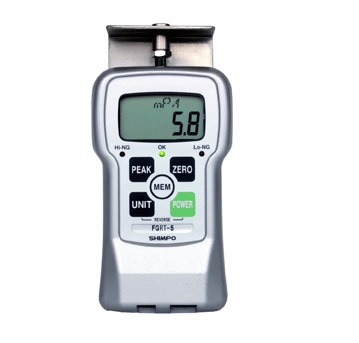

Đồng hồ đo lực kéo nén NIDEC FGRT-1, FGRT-2, FGRT-5, FGRT-10

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Đồng hồ đo lực kéo nén NIDEC FGRT-1, FGRT-2, FGRT-5, FGRT-10
Thông tin sản phẩm
Đồng hồ đo lực kéo nén NIDEC FGRT-1, FGRT-2, FGRT-5, FGRT-10

Model FGRT-1 FGRT-2 FGRT-5 FGRT-10
Rated Load Capacity ±10N ±20N ±50N ±100N
Unit kPa(KiloPascal)
Measurement Method Normal Measurement, Peak Measurement
Display Intervals could be selected from 1,2,3,5,10,20 Revolution/Sec.
Sampling Interval 1000 Revolution/Sec.
Accuracy ±0.2% ±1/2digit
Comparator Function Upper Limit, Lower Limit NG Pass/Acceptance Decision could be possible
Memory Function Max.1000 items could be memorized
Communication USB Exists.through exclusive software,communication with P.C.
RS-232C
Exists.through exclusive software,communication with P.C.

Digimatic Connection possible to Mitsutoyo Digimatic Printer
Output Analog ±1V  Accuracy±50mV
Over Load Plus.Minus Over Load
Comparator Upper Limit, Lower Limit NG Pass/Success
Input ZERO ZERO Tare Pulling.Peak Reset
HOLD HOLD Display preservation
PEAK PEAK Set Measurement Mode
Current Inner Stored Nickle Hydrogen Battery, AC Adapter (DC9V/200mA)
