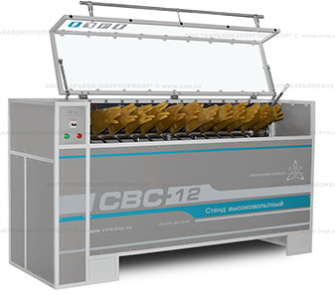

Hợp bộ thử nghiệm cao áp SVS-12С KEP

Mã sản phẩm: SVS-12С |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Hợp bộ thử nghiệm cao áp
Model: SVS-12С
Hãng: KEP
Thông tin sản phẩm

- The quality of rubber gloves is tested by applying high AC voltage of 9300 V at 50 Hz to them.
- Rubber gloves tester SVS-12 provides the following:
- Automatic discarding of those gloves, where leakage current is over 9 mA;
- Automatic switching off the high voltage if the top lid is opened during the testing process;
- Automatic filling gloves with water before testing;
- Automatic delay that allows all water to drip from taps before applying testing voltage;
- Automatically set time necessary for full test of each glove;
- Visual control of the value of the test voltage and leakage current for each individual glove;
- Audio signalling on the overall testing progress as well as audio indication of those gloves which failed the testing.
- The tester SVS-12 allows simultaneous testing of up to 12 gloves.

Thông số kỹ thuật

Parameter Value
Single-phase AC power supply voltage, V
220 ± 22
Frequency, Hz 50 ± 1
Power consumption, VA, max 1500
Test Mode
Testing Lamp (100V)  Bath
Minimum RMS value of test voltage, kV 0,02 1,0
Maximum RMS value of test voltage, kV 0,1
10
Reduced error voltage measurement, % ± 3 ± 3
Minimum measurement of leakage current, mA not measured 0,3
Mmaximum measured leakage current, mA - 9
Reduced error of current measurement, % - ± 3
Quantity of simultaneous test of gloves on the bench pieces 12
Tthe overall cycle time for batch test gloves, min. 2
Dimensions of the control unit, mm, max  316×187×132
Ddimensions rack glove, mm, max  2015×876×1112
Weight control unit, kg, max 3
Weight rack glove, kg, max  300
Lifespan, years, avg 10
Degree of protection of electrical equipment from the effects of the environment stand IR30 GOST 14255-69
