Hợp bộ thử nghiệm cao áp SVS-50M KEP

Mã sản phẩm: SVS-50M |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

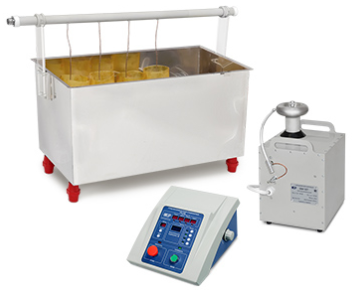

Hợp bộ thử nghiệm cao áp
Model: SVS-50M
Hãng: KEP
Thông tin sản phẩm
Parameter value
Single-phase AC power supply voltage, V  220 ± 22
Frequency, Hz  50 ± 2
Highest power consumption, kW, max 2
Quantity of sources of high voltage 1
Highest output voltage, kV  50
Measuring ranges AC voltage, kV  0,1; 3, 15, 50
Reduced error voltage measurement in each band,%, max  3
Highest output current, mA  50
Maximum measurable current on the channel, mA  9,99
Number of electrodes (channels) of the test bath items  4
Dimensions baths L × W × H, mm 390×820×390
Baths in dry weight, kg, max 10
Dimensions control unit L × W × H, mm
Control unit weight, kg  14
High-voltage unit dimensions L × W × H, mm  270×230×370
High-voltage unit weight, kg  20
Total weight of the stand, kg, max  60
Area occupied by the stand (recommended, not less), m2  2x2
Lifespan, years, avg  10
