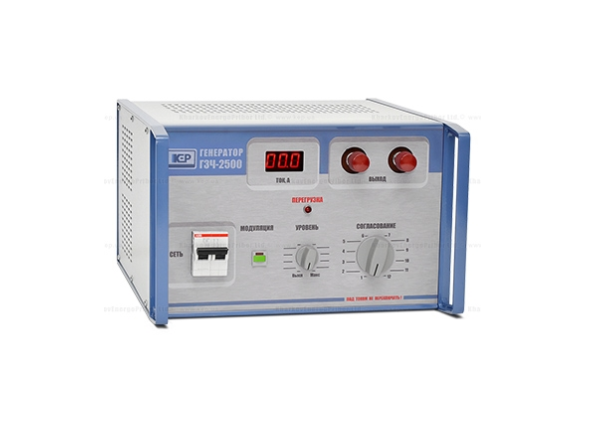

Hợp bộ tìm sự cố cáp ngầm GZCH-2500 KEP

Mã sản phẩm: GZCH-2500 |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Hợp bộ tìm sự cố cáp ngầm
Model: GZCH-2500
Hãng: KEP
Thông tin sản phẩm
- Audio-frequency generator GZCH-2500 is designed for locating underground communication and power cables and determining the depth of their position, as well as pinpointing the places of short circuits of the cable cores using induction method.
- Input AC voltage 220 ​​V, 50 Hz through the automatic circuit breaker and a thyristor is fed to the power rectifier, capacitive filter and then to a transistor inverter, the load of which is the output transformer.
- The generator has a audio-frequency modulation mode, protection against overcurrent, smooth and scalar adjustments of the output voltage.
- The generator features a special way of low-frequency modulation of the output signal. The modulation is performed by pulses of the rectangular shape with 1.5-3 Hz frequency, so that during the first half period of the modulating voltage the signal with 1024 Hz frequency is generated, while during the second half-period - one with 2048 Hz frequency. The advantage of this modulation method is that if the receiver accepts frequencies of 1024 Hz and 2048 Hz (for example, P-900), it would be possible to switch between the two on the receiver itself. In the continuous generation mode, the signal with 1024 Hz frequency is generated.

Thông số kỹ thuật
  • Condition Value
    Air temperature, °С from -20 to +40
    Relative humidity, %, up to 80 at +25° С
    Atmospheric pressure, kPa (mm hg) 84,0 – 106,7 (630 – 800)
Characteristic Value
Output power in the coherent mode, W, min
2500
Maximum output voltage while ideling, V 300
Maximum output current, A 50
Generation frequency, Hz 1024/2048
Modulation frequency, Hz 1.5-3
Number of stages to match of the load
12
Load resistance range
0.5...150
Single-phase AC power supply voltage, V
220±22
Maximum consumed power, W
3000
Dimensions, mm
320х360х200
Net weight, kg, max
15
