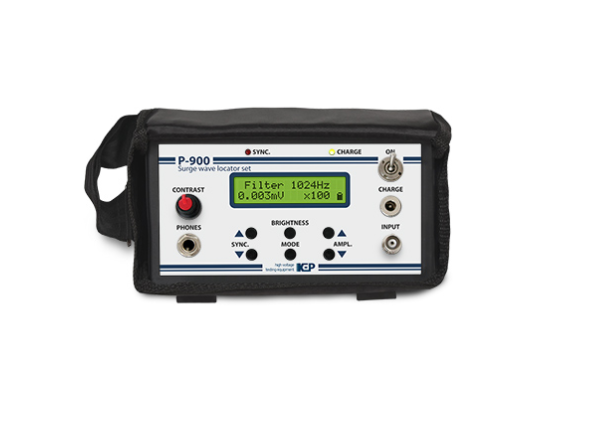

Hợp bộ tìm sự cố cáp ngầm P-900 KEP

Mã sản phẩm: P-900 |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Hợp bộ tìm sự cố cáp ngầm
Model: P-900
Hãng: KEP
Thông tin sản phẩm

- Surge wave locator set P-900 is designed to perform the following:
- finding the location of the underground cable lines and power cables with an inductive method;
- determining the depth of the cables' position;
- finding the location of the short-circuits in the cable veins;
- finding the location of the insulation faults in the high voltage power cables with an acoustic method.
- When searching with an inductive method the receiver must be operated in conjunction with an additional surge wave generator, capable of producing audio frequencies of 1024±1 Hz or 2048±2 Hz, providing an output power of 200 W in a range of loads from 0.5 to 200 Ohms (for example, GZCH-2500).
- When searching with an acoustic method the receiver must be operated in conjunction with an additional pulse generator with voltage of 10.5 - 32 kV and the energy of 150-1920 J (for example, GAUV-6).

Thông số kỹ thuật

  • Condition Value
    Air temperature, °С from -20 to +40
    Relative humidity, %, up to
    85 at +30° С
    Atmospheric pressure, kPa (mm hg)
    84,0 – 106,7 (630 – 800)

Characteristic Value
Active frequencies, Hz, «1024 Hz» mode
1024±2
Active frequencies, Hz, «12048 Hz» mode 2048±2
Sensitivity under the maximum amplification, µV 20
Sensitivity under the minimum amplification, mV 500
Frequency band under -3 dB, «1024 Hz» mode 10
Frequency band under -3 dB, «1024 Hz» mode 12
Frequency band in the acoustic mode, Hz
20...2200
Built-in battery parameters
6 V, 2500 Ah
Continuous duty cycle, h, min 16
