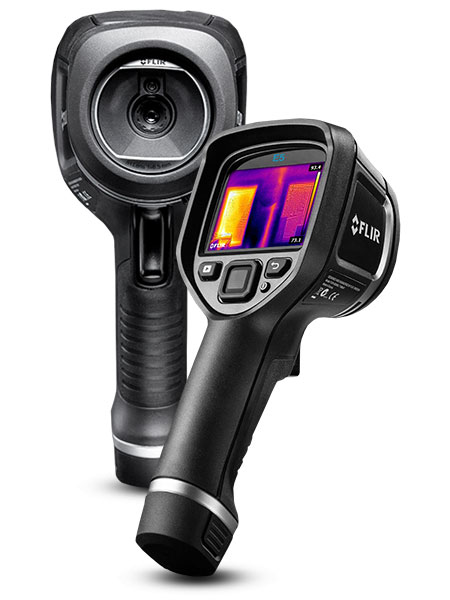

Máy chụp ảnh nhiệt, Camera nhiệt hồng ngoại FLIR E5

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy chụp ảnh nhiệt, Camera nhiệt hồng ngoại FLIR E5

Thông tin sản phẩm

Máy chụp ảnh nhiệt, Camera nhiệt hồng ngoại FLIR E5


OVERVIEW
Detector Type
Uncooled microbolometer
IR Resolution
120 × 90 pixels
List of Contents
•Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
Packaging Size
385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
Set-up Commands
Local adaptation of units, language, date and time formats
Spectral Range
7.5–13 µm
COMPLIANCE & CERTIFICATIONS
Certifications
UL, CSA, CE, PSE and CCC
CONNECTIONS & COMMUNICATIONS
AC Operation
AC adapter, 90–260 VAC input, 5 VDC output to camera
Interface
USB Micro: Data transfer to and from PC and Mac device
ENVIRONMENTAL
EMC
•WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
Humidity (Operating and Storage)
IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range
–15°C to 50°C (5°F to 122°F)
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
–40°C to 70°C (–40°F to 158°F)
Vibration
2 g (IEC 60068-2-6)
Emissivity table/correction
Emissivity table of predefined materials/variable from 0.1 to 1.0
Encapsulation/Drop
IP 54 (IEC 60529)/2m (6.6 ft.)
IMAGING & OPTICAL
Camera size (L x W x H)
244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Camera weight incl battery
0.575 kg (1.27 lb.)
Color
Black and gray
Color palettes
Black & white, iron, and rainbow
f-number
1.5
Field of view (FOV)
45° × 34°
Focus
Focus free
Image Adjustment
Automatic adjust/lock image
Image Frequency
9 Hz
Image Modes
Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera
Minimum Focus Distance
0.5 m (1.6 ft.)
Multi Spectral Dynamic Imaging (MSX)
IR image enhanced with visible camera detail
Spatial resolution (IFOV)
6.9 mrad
Digital Camera Resolution/FOV
640 × 480/55° × 43°
MEASUREMENT & ANALYSIS
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Object Temperature Range
–20°C to 250°C (–4°F to 482°F)
Reflected apparent temperature correction
Automatic, based on input of reflected temperature
Thermal Sensitivity/NETD
<0.10°C (0.27°F) / <100 mK
Spotmeter and Area
Center spot; box with min./max.
METER DATA
Display
3.0 in. 320 × 240 color LCD
POWER
Charging system
Battery is charged inside the camera or in specific charger.
Charging Time
2.5 hours to 90% capacity in camera. 2 hours in charger.
Power Management
Automatic shut-down
Battery type & operating time
Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
STORAGE MEDIA
File Formats
Standard JPEG, 14-bit measurement data included
