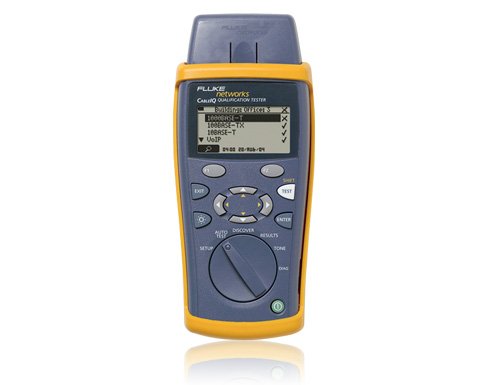

Máy đo cáp viễn thông Fluke CableIQ Qualification

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo cáp viễn thông Fluke CableIQ Qualification

Thông tin sản phẩm

Máy đo cáp viễn thông Fluke CableIQ Qualification


Cable types supported

UTP, STP, FTP, SSTP, RG6, RG59, audio and security

Qualification autotests

1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax

Supported tests

Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection.

Wiremap

Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs.

Find fault

Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application

Results storage

Up to 250 qualification test results

Power

Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries

Battery life

20 hours of typical use, without backlight

Other battery types supported

4AA photo lithium, NIHM, NICAD

Dimensions and weight

7in x 3.5in x 1.75in (17.8cm x 8.9cm x 4.5cm) 1.2 lb (0.55 kg)
