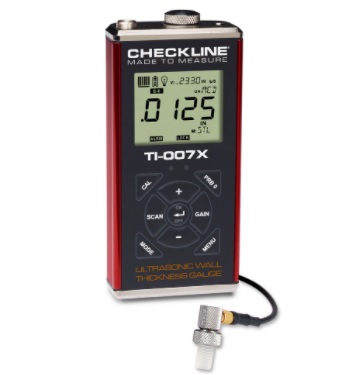

Máy đo chiều dày siêu âm Checkline TI-007X, TI-007DLX

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo chiều dày siêu âm Checkline TI-007X, TI-007DLX

    Yêu cầu giá tốt:


    Email: hien@ttech.vn

Thông tin sản phẩm

Máy đo chiều dày siêu âm Checkline TI-007X, TI-007DLX

Total Measuring Range
0.006 - 36.000 inches
0.15 - 924 mm
(depends on material and transducer/probe type)
Range with Standard Probe 0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
Resolution 0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
Measuring Modes Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
Gain Automatic time dependent gain (TDG) with manual override
Velocity Range 0.0120 to .7300 in/μs (305 to 18,542 m/sec)
Probe (Standard) 1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Probes (optional) Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
Cable 4 ft. (1.2 m) with Microdot/Lemo00 connector.
Display Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
Display Backlight Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Display Update Rate 10 Hz (10 updates/sec)
Output USB single value only (no internal memory)TI-007DLX for a model with build-in memory for 40,000 values USB output
Output Optional RS-232 and Bluetooth
Operating Temperature -22 to 167F (-30 to 75C)
Battery Type 2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
Battery Life Typically operates for 35 hours on alkaline and 18 hours on NiCad
