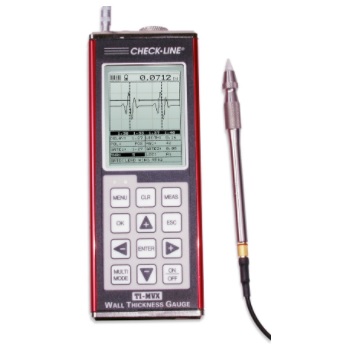

Máy đo chiều dày siêu âm Checkline TI-PVX


Range in Steel: Interface-Echo Mode: Steel 0.05 1.0 in (1.27mm - 25.4mm). Plastics from .005in. (127mm).
Echo-Echo Mode: Steel .006in -.500in (.15mm - 12.7mm).
Pulse-Echo Contact Mode: Steel .040in - 10.0in (1mm - 254mm). Plastics from .01
Resolution: (selectable) +/- .001in (0.01 mm), or +/- .0001in - (.001mm).
Velocity Range: .0492 to .3936 in./ms
1250 to 9999 meters/sec
Units: English & Metric
Memory: 16 megabit non-volatile ram.
Data Logger: 12,000 readings and waveforms (alpha numeric storage).
Display: 1/8 in. VGA grayscale display
Setups: 16 factory and 48 user-defined setups.
Display Views: A-Scan Rectified +/- (half wave view) RF (full waveform view)

B-Scan Time based cross section view. Display speed of 15 secs per screen.

Large Digits Standard thickness view. Digit Height: 0.400 in (10mm).
Power Source: Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life: Typically operates for 150 hours on alkaline and 100 hours on NiCad
Power off: Auto power off if idle 5 min.
Operating Temperature: -14° to 140°F (-10° to 60°C).
Size: 2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm).
Weight: 0.4 kg (0.9 lbs )
