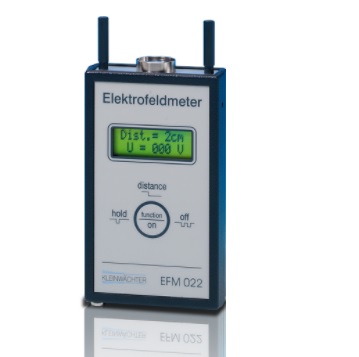

Máy đo điện áp tĩnh điện Kleinwächter EFM 023

Thông tin sản phẩm

Máy đo điện áp tĩnh điện Kleinwächter EFM 023

The EFM 023 is conform to the EFM 022 plus an analoque interface ± 1V. By using our USB 110 you can connect it to a PC with USB interface.

Menu driven selection of measurement distance
Voltage potentials can be directly measured for preselected measurement distances, thus would avoid recalculation. 5 measurement distances are available, which makes it even possible for your most convenient handling in problematic areas.

Hold function
The hold function keeps the actual reading in memory, e.g. after obtaining measurements in spots where the on-line reading of display is not possible.

Charge Plate - function
You need our Charge-Plate Set.

Mount the plate electrodes on top of the EFM 022. Than charge the plate with the HV-Converter higher ±1.100V. By discharging the plate an internal timer starts at ±1.000V and stops at ±100V. The positive / negative discharge time will be shown at the display.

E-Field Meter Ranges:
manual selected.
± 20kV/m; ± 200kV/m und ± 1MV/m
Imortant ! Only in ths Mode the analog interface is switched on !
Max. Value:
Distance 1cm is switched on (for MK 023)
After pressing the switch the maximum pos. and neg. Measure Values are displayed (Walking Test). By pressing the switch again the values will be resetand starts again.
