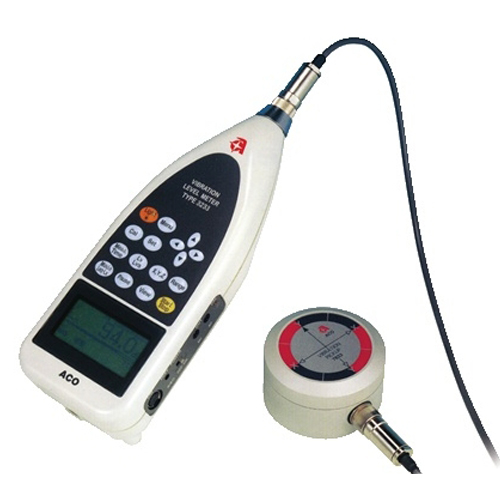

Máy đo độ rung 3233 ACO

Mã sản phẩm: 3233 |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Thông tin sản phẩm
- Easy to handle as a result of its smallness and light weight, high mobility and easy operation. Measurer does not require any special skill. The pickup for measurement offers compatibility.
- Digital values and bar graphs are displayed on a large-scale liquid crystal screen equipped with backlight. Anyone can take a measurement without a reading error, and easily grasp vibration amounts with the bar graph.
- Wide range of linearity 75dB eliminates switching.
- Maximum and minimum values(Lmax, Lmin), Percentile vibration level (Lx; five values) and power average are computed simultaneously in three directions, and selectively displayed.
- Rs-232C interface built-in, data management and processing can be easily carried out by data management software (separately sold).
- A wide range of vibration levels can be easily measured and operability is enhanced by using the tripod stand.

Thông số kỹ thuật

- Acceleration pickup : Type 7833
- Measuring level : 30dB to 119dB
- Linearity range : 75dB
- Frequency range : 1Hz to 80Hz
- Dynamic characteristic : 0.63 second
- Calibration : Electrical calibration by built-inoscillator(sinusoidal wave of 31.5Hz)
- Display : Liquid crystal display (128x64 dots)
- Output terminal : Independent output in 3 directions respectibely
- Battery : Four AA batteries or AC adaptor
- Weight Approximately : 380g including batteries
- AC output
   + Output voltage : 316mVrms(full scale)
   + Output resustance : 600 ohm
   + Load resustance ; Not less than 10k ohm
- DC output
   + Output voltage : 2.5V(full scale) 0.25V/10dB
   + Out put resutance : 50 ohm
   + Load resutance : Not less than 10k ohm
