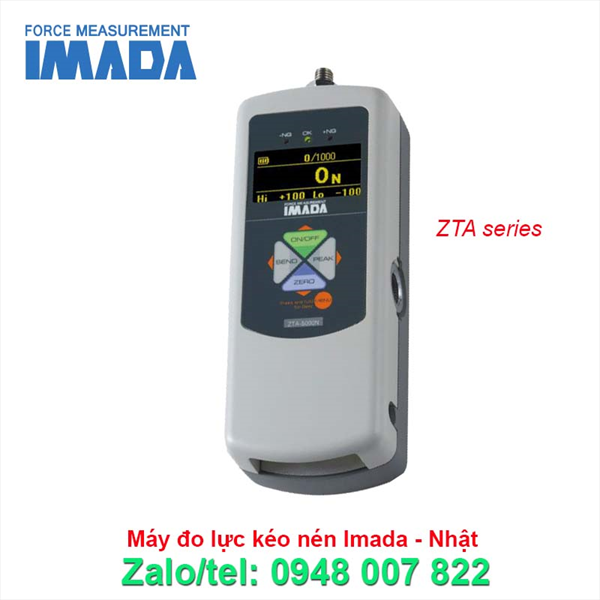

Máy đo lực kéo nén ZTA series Imada

Mã sản phẩm: ZTA series |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo lực kéo nén
Model: ZTA series
Hãng: Imada
Thông tin sản phẩm
Model ZTA
Feature Advanced model with various functions such as data saving in USB memory stick, displacement I/O and more.
Accuracy +/-0.2%F.S.+/-1digit
Unit of measurement (*1) N, kgf, lbf (*2)
Display 4-digit Organic EL
Display update 16 / sec
Sampling rate 2000 data / sec at maximum (*3)
Battery 8 hours (2 hours charge) (*4)
Safe overload rating Approx.200%F.S.
Operating environment Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH
Function Customized display (header and footer), Peak hold (tension and compression),
Internal 1000 points data memory, Comparator (judgment of OK or NG),
Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off),
Dumping,Time display, 1st/2nd peak,Displacement detection at force peak value,
Displacement zero reset at selected force, setting lock
Output USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A),
Comparator 3 steps (-NG/OK/+NG), Overload alarm,
Sub comparator 2 steps (output of large or small judgment), USB flash drive, Displacement.
Overload warning Approx.110%F.S. (Warning message and alarm )
External connecting switch SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Available linear scales (*6) - Online driver output (a line receiver according to RS422/485 must be built in.)
- Open collector output (Voltage drop between contacts must be smaller than 0.5V.
Weight Approx.490g (*7)

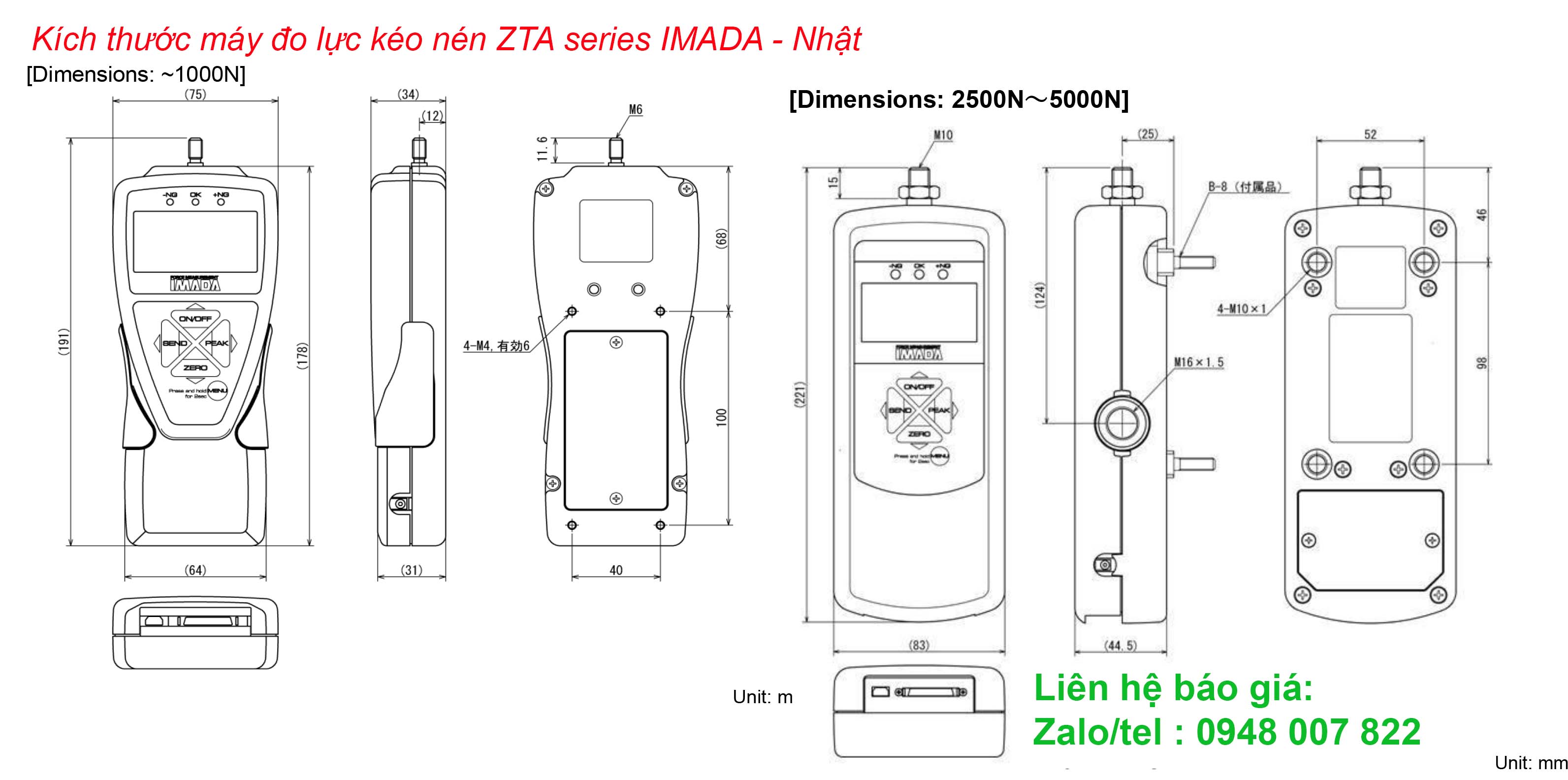

Dimensions Please refer to dimensions.
Accessory(*6) AC adapter, Inspection certificate, CD driver (including simple software for data logging),
Attachments (The set of attachments varies according to range.),
USB cable,Carrying case, Adaptor for USB flash drive. (*8)
