Máy đo lực kéo nén ZTS series Imada

Mã sản phẩm: ZTS series |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo lực kéo nén
Model: ZTS series
Hãng: Imada
Thông tin sản phẩm

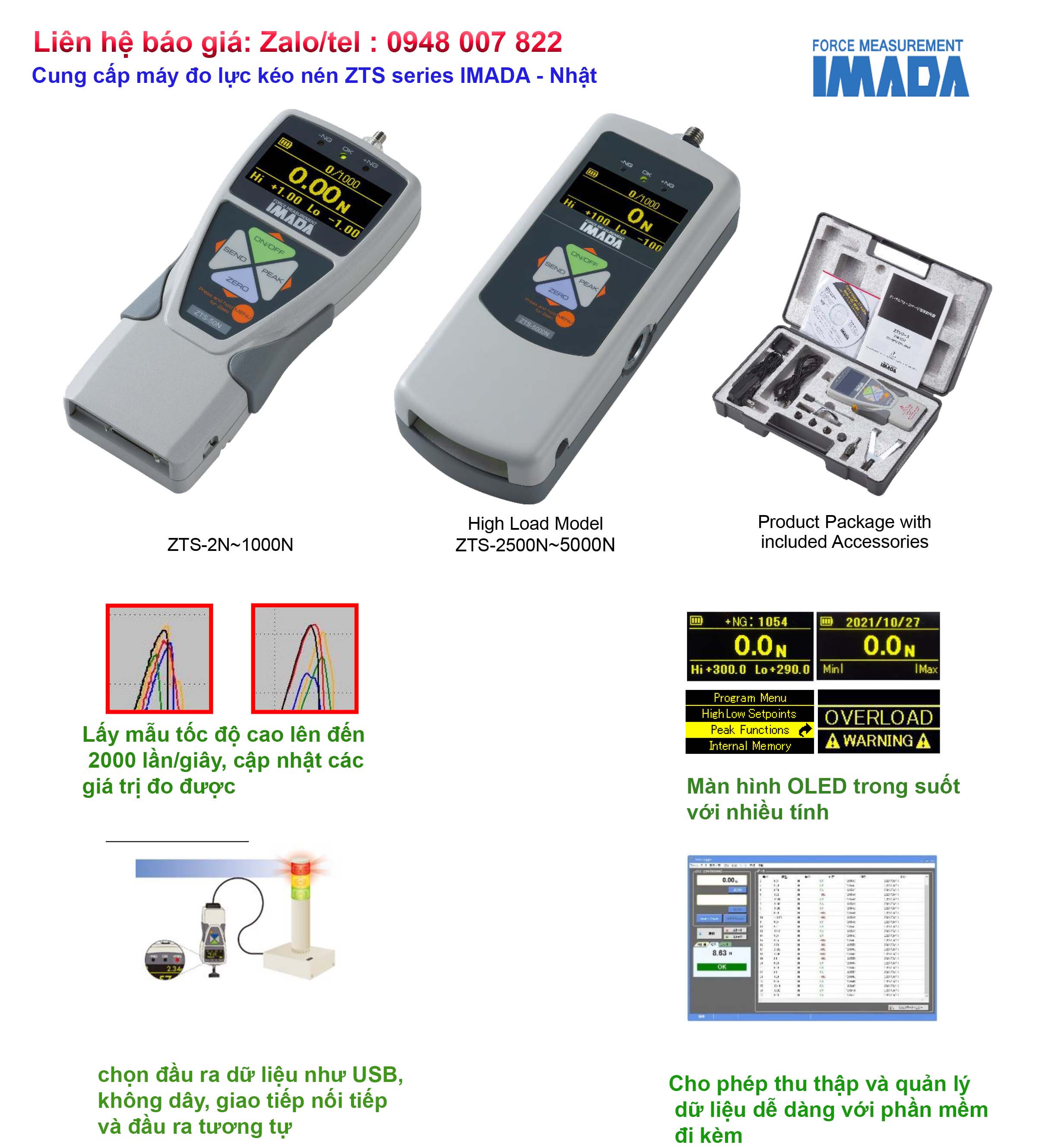

- For Accurate Force Measurement

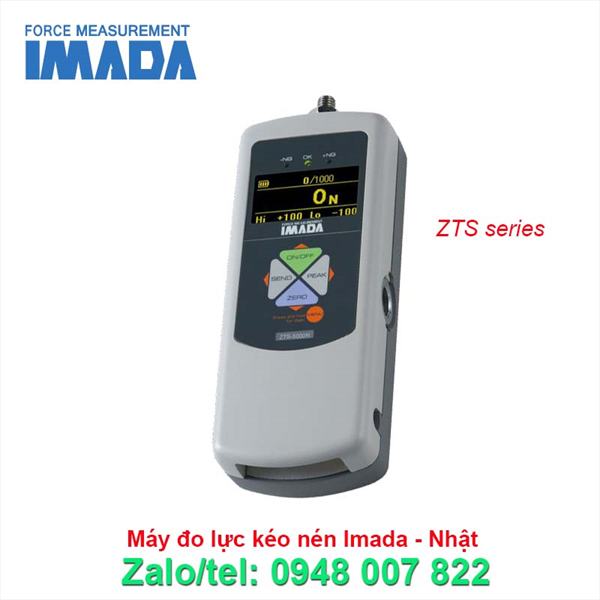

IMADA Standard Model Digital Force Gauge ZTS series measures compression and tension force.
The capacity is from 2N (200gf) to 1000N(100kgf).
The accuracy +/-0.2% F.S. and the 2000Hz high speed sampling rate capture accurate force values of testing.

- High Visible Display & Lamps
The display is adopting OEL. It enables to show force values, unit and others very clearly.
The display has 3 separated rows. They show Force and the necessary information at the same time
such as date, time, high/low setting points and No. of stored data.
The LED lamps above the force gauge help easy checking whether the displayed force is between setting points.

- Useful Functions
ZTS series equips a lot of useful functions for force measurement.
Peak hold function, Data sending function (up to 1000 points to the internal memory),
Pass/Fail decision and more.  High-operability force measurements are possible.

- Data Output
Many types of output signals are available such as USB, analog , RS232C and more.
Using the included software ZT logger, ZTS is able to output the data stored in the internal memory to a PC.
Continuous test data output  is also possible at 10 data/ sec.
Using the optional software Force Recorder (Light / Standard), draw a force- time graph at 2000 data/sec on PC.
It is ideal for detailed analyses.

Thông số kỹ thuật

Model  ZTS
Feature Standard model with high performance and usability
Accuracy +/-0.2%F.S.+/-1digit
Unit of measurement (*1) N, kgf, lbf (*2)
Display 4-digit organic EL
Display update 16 times / sec.
Sampling rate 2000 data / sec at maximum
Battery 8 hours (2 hours charge)
Safe overload rating Approx.200%F.S.
Operating environment Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH
Function Customized display (header and footer), Peak hold (tension and compression),
Internal 1000 points data memory, Comparator (judgment of OK or NG),
Reversible display, Sign inversion, Zero clear timer,
+NG alarm, Off timer (auto power off), Dumping,Time display, Setting lock
Output USB, RS232C, Mitutoyo digimatic (*3), 2 VDC analog output (D/A),
Comparator 3 steps (-NG/OK/+NG), Overload alarm
Overload warning Approx.110%F.S. (Warning message and alarm )
External connecting switch SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Weight From 2N to 1000N model: Approx.490g (*4)

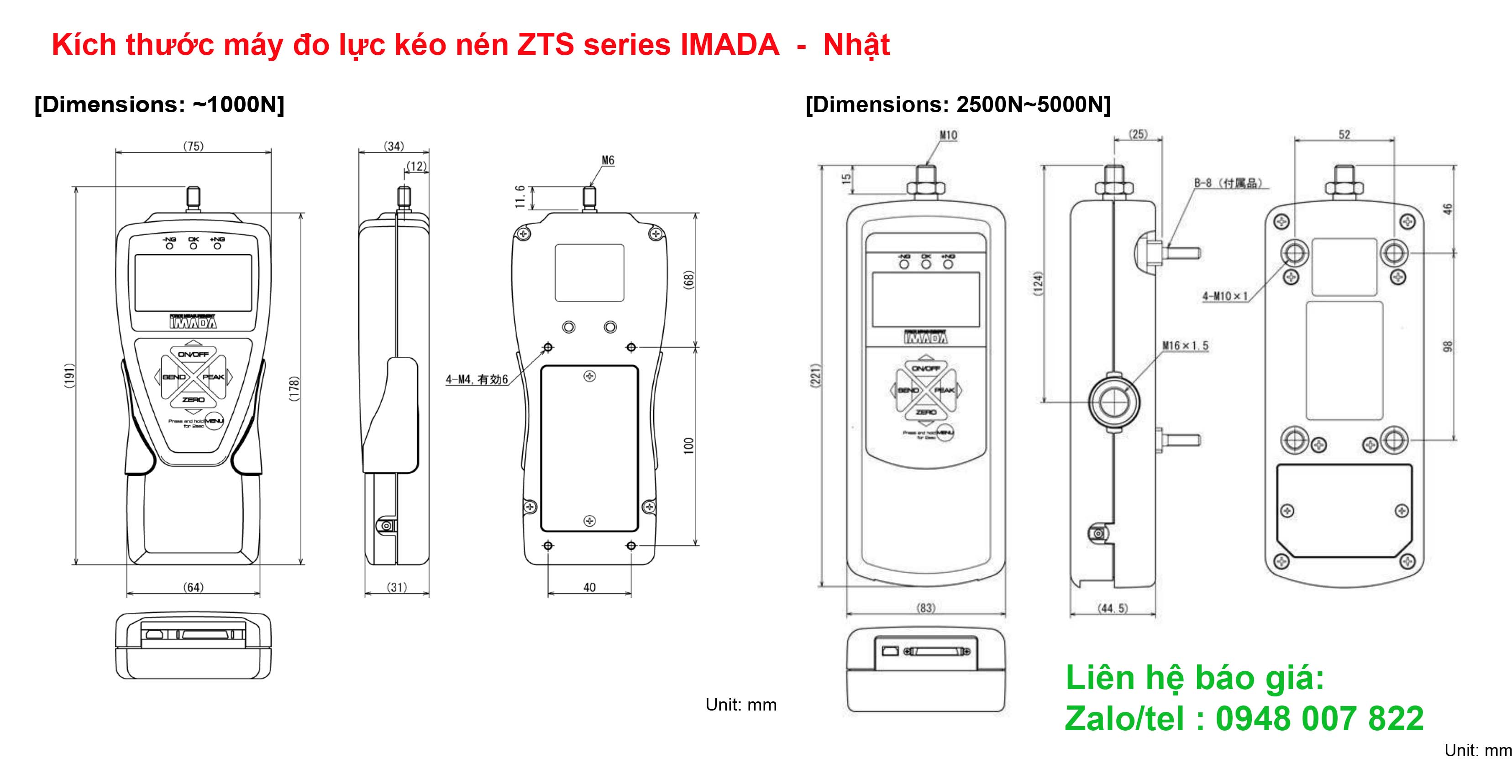

Dimensions Please refer to dimensions.
Accessory AC adapter, Inspection certificate, CD driver (including simple software for data logging),
Attachments (The set of attachments varies according to range.), USB cable,Carrying case.
