Thông tin sản phẩm

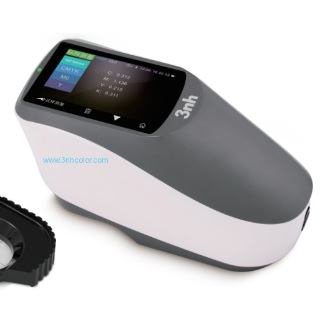

Máy đo màu 3NH YD5010

Grating Spectrodensitometer

Model

YD5010 45/0 Spectrodensitometer

Measurement Geometry

45/0(45 ring-shaped illumination, 0 degree viewing angle);, ISO 5-4,CIE No.15

Features

Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm、Φ4mm、Φ8mm.

Light Source

Combined LED Light, UV Light

Spectral separation device

Concave Grating

Detector

256 Image Element Double Array CMOS Image Sensor

Wavelength Range

400~700nm

Wavelength Pitch

10nm

Half Bandwidth

10nm

Measurement Conditions

Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)

Density Standards

ISO Status A, E, I, T

Density index

Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level

Measurement aperture

Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional

Color Spaces

CIE LAB,XYZ,Yxy,LCh

Color Difference Formula

ΔE*ab,ΔE*94,ΔE*00

Other Colorimetric Index

/

Observer Angle

2°/10°

Illuminants

A,C,D50,D55,D65,D75,F2,F7,F11,F12

Measurement Time

About 1.5s

Repeatability

Density: Within 0.01 D

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3

Inter-instrument Error

Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3

Measurement mode

Single Measurement, Average Measurement(2-99)

Size(L*W*H)

184*77*105mm

Weight

About 600g

Power source

Li-ion battery. 5000 measurements within 8 hours

Illuminant Life Span

5 years, more than 3 million times measurements

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Interface

USB,

Data memory

10000 pcs

Language

Simplified Chinese, English, Traditional Chinese

Working Environment

Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m

Storage Environment

Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

Standard Accessory

Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate

Optional Accessory

Micro Printer
