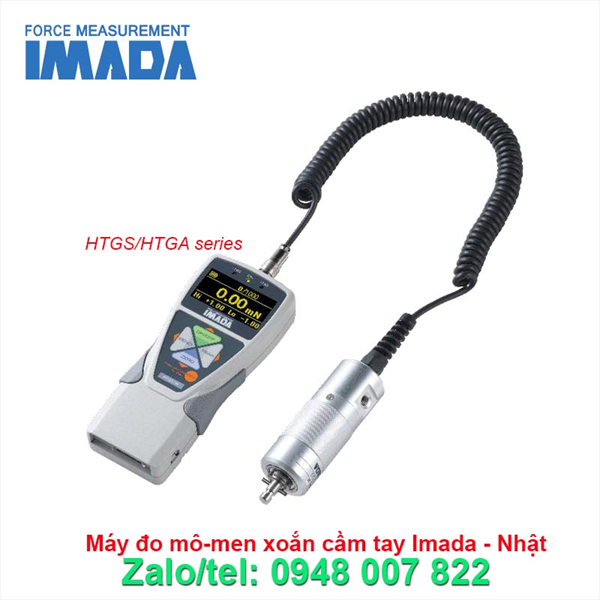

Máy đo momen HTGS/HTGA series Imada

Mã sản phẩm: HTGS/HTGA series |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo momen
Model: HTGS/HTGA series
Hãng: Imada
Thông tin sản phẩm
Outline Advanced model with various functions such as data saving
in USB memory stick, angle(displacement) I/O and more
Standard model
Accuracy ±0.5%F.S.±1digit
Unit of measurement (*1) N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in (N-cm, kgf-cm, lbf-in and ozf-in are available for 0.5N-m.)
Display 4-digit Organic EL
Display update 16 / sec
Sampling rate 2000 data / sec at maximum (*2)
Battery Nickel-hydrogen battery / Operating time:8 hours (2hours full charge) (*3)
Safe overload rating Approx.200%F.S.
Operating environment Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH
Function  Customized display (header and footer), Peak hold (clockwise and counter-clockwise), Internal 1000 points data memory,
Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer,
+NG alarm, Off timer (auto power off), Dumping, Time display, setting lock
Angle zero reset at selected torque(*4) -

USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm

Sub comparator 2 steps (output of large or small judgment), USB flash drive, Angle(displacement) (*4) -
Overload warning Approx.110%F.S. (Warning message and alarm )
External connecting switch SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Weight Display : approx.490g
Dimensions Please refer to dimensions.
Accessory AC adapter, Inspection certificate, CD driver (including simple software for data logging),
Force Recorder Professional (Graphing software for demo), USB cable, Carrying case, L wrench, handles (10N-m range only)
USB flash drive adapter(*6) -
Applicable Attachment Please see Specification for Torque Gauge/ Motorized Stand Attachment and
Specification for Torque Gauge Table Attachment
