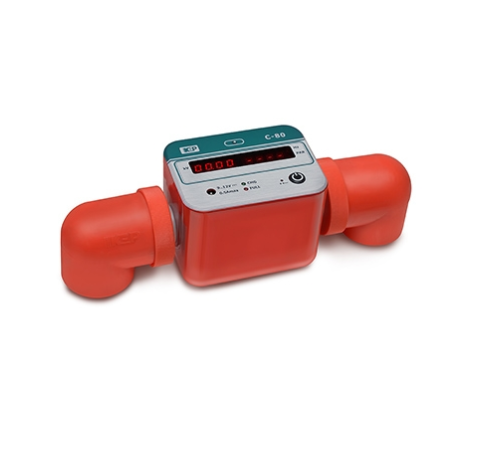

Máy thử cách điện dầu biến áp C-80 KEP

Mã sản phẩm: C-80 |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy thử cách điện dầu biến áp
Model: C-80
Hãng: KEP
Thông tin sản phẩm

Oil tester calibrator C-80 (C-100) is intended for AC voltage measurement on the balanced transformers with the grounded midpoint high-voltage terminals, which are used in OLT‑series oil testers.

Thông số kỹ thuật

  • Operating Conditions

    The cell is designed for an indoors operation under the following conditions:

    Condition Value
    Air temperature, °С from +10 to +35
    Relative humidity, %, up to
    80 at +25° С
    Atmospheric pressure, kPa (mm hg)
    84,0 – 106,7 (630 – 800)

Characteristic C-80 C-100
Measured voltage, kV, RMS 10 – 80 10 – 100
Measurement uncertainty, % 1.0 of reading
Measured frequency, Hz 45 – 65
Voltage resolution, kV 0.01
Peak factor resolution, kV 0.01
Frequency resolution, Hz 0.01
Inter-electrode gap, mm 221 273
Input resistance, MΩ, min 600 700
Internal battery LiPO 3.7V
Charging supply voltage, V 9 – 12
Continuous run time on full charge, hours 4
Consumption supply current, mA, max 50
Dimensions (W × H × D), mm, max 280 × 90 × 50 327 × 91 × 80
Net weight, kg, max 1.5
