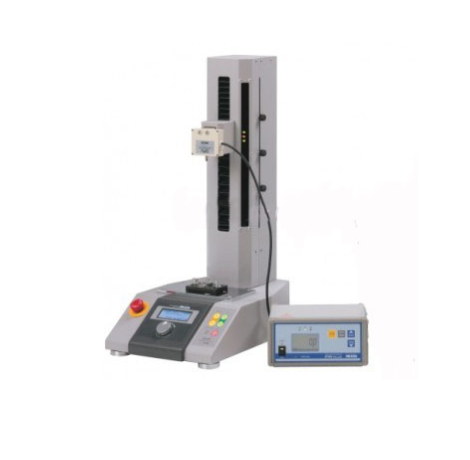

Máy thử kéo nén F-S Master Imada

Mã sản phẩm: F-S Master |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy thử kéo nén
Model: F-S Master
Hãng: Imada
Thông tin sản phẩm

Testing system to draw force displacement graph.
- This force displacement measurement is composed of a load cell, an amplifier, a test stand, a graph drawing software.
- Load cells and test stands are selectable from various types.(Please refer to specifications below.)

Thông số kỹ thuật

Model F-S Master K-_N (Please refer to “Models of F-S Master” below.)
Accuracy Force +/-0.2% F.S. +/-1 digit
Displacement +/-0.1mm +/-1 digit (with no load)
Unit of measurement Force N,kgf,lbf
Displacement mm, inch
Range Load cell 2N(200gf), 5N(500gf), 10N(1kgf), 20N(2kgf), 50N(5kgf), 100N(10kgf), 200N(20kgf), 500N(50kgf), 1000N(100kgf), 2000N(200kgf), 5000N(500kgf)(Selectable from DPU series)
Test stand Selectable from 50N(5kgf), 500N(50kgf), 1000N(100kgf), 2500N(250kgf), 5000N(500kgf)
Display Force 4-digit LCD(e.g.Resolution of 5N loadcell is 0.001N)
Displacement 0.01mm(Displayed at F-S Recorder)
Test speed 0.1mm/min(Displayed at F-S Recorder)
Deflection at maximum force Please refer to “Model list of F-S Master” below.
Model:Stroke:Speed MSF-50N MSL:80mm
MX2-500N 0.5K2: 240mm :10-300mm / min
MX2-1000N 1K2: 295mm :10-300mm / min
EMX-1000N 1KE: 280mm :0.5-600mm / min
MX2-2500N 2.5K2:310mm :10-300mm / min
MX-5000N 5K: 350mm :10-300mm / min
*1 Please refer to “Model list of F-S Master” for model detail.
*2 ”Stroke” means the maximum length from the top of force gauge to the table of test stand. Therefore, stroke varies depending on the load cell and the attachments combined.
Sampling rate 2000 data / sec. (max)
Display update 10 times / sec.
Output USB,Digital(RS232C),Analog(Approx. +/-2V),Various comparator output,Overload output
Function of test stands Stroke limit, Overload prevention(*1), Force control(*2), Emergency stop
*1 We cannot assure the perfect prevention against sensor break-down.
*2 The value of force control is specified by the absolute value.
Power AC100V-240V Free input(*Power is necessary for both test stand and force analizer respectively. )
Accessory Instruction manual, 2 pcs of power cable, 2 pcs of spare hues, Inspection certificate
Driver CD-ROM, Data importing software:FAP Logger, Graph drawing software F-S Recorder
