Máy thử kéo nén FSA series Imada

Mã sản phẩm: FSA series |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy thử kéo nén
Model: FSA series
Hãng: Imada
Thông tin sản phẩm
- Feature:

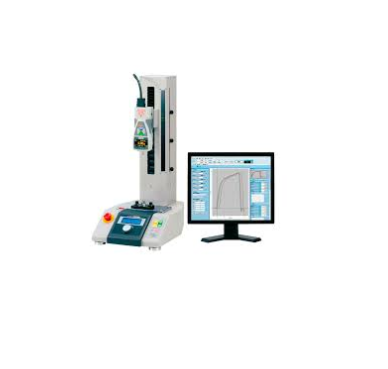

IMADA Force-Displacement Measurement Unit FSA series can be used for tactile test, material evaluation and more.
The high speed sampling rate 2000 Hz captures accurate values and draws a detailed graph of force and displacement.
The unit includes a force gauge, a test stand with a linear scale, a cable and a graphing software.
The capacity is from 2N to 2500N.

- Simple Setup
You mount the force gauge on the test stand and connect them by the cable. You can perform force-displacement measurement by using with necessary fixtures and connecting external equipment according to your needs.

- High Speed Sampling Rate 2000Hz for Capturing Values and Drawing a Graph
The high speed sampling rate 2000Hz captures accurate values and draws force vs displacement graph in detail.

- Easy Report Creation
The included software supports your report creation. You can perform zooming a specific area, adding comments, graph layering (up to 5 graphs) and more. Moreover, the created graph can be directly exported as Word, Excel and PDF file.

- Auto Data Recording
Graph drawing automatically starts and stops at set force/displacement or external signal.

Thông số kỹ thuật

Model FSA-__-_N
Measurement unit Force N, kgf, lbf (switchable) 1*
Displacement mm, inch (switchable) 1*
Range 2N(200gf), 5N(500gf), 20N(2kgf), 50N(5kgf), 100N(10kgf), 200N(20kgf), 500N(50kgf), 1000N(100kgf), 2500N(250kgf)
Resolution Force 4 digit (e.g. Resolution of 5N force gauge is 0.001N)
Displacement 0.001mm (on software; Force Recorder Professional)
0.01mm (on force gauge display)
Accuracy Force +/-0.2% F.S. +/-1digit
Displacement +/-0.1mm +/-1 digit (with no load)
*When maximum force is applied, the stand may be deformed
upward and downward (approx. -0.5mm~+0.5mm).
Model:Stroke:Speed MSL:80mm:Manual adjustment knob
0.5K2:230mm:10-300mm/min
1K2:290mm:10-300mm/min
2.5K2:290mm:10-300mm/min
0.5HK2:230mm:10-300mm/min
1KE:290mm:0.5-600mm/min
*1 Please refer to Model list below.
*2”Stroke” means the maximum length from the top of force gauge to the table of test stand. Therefore, stroke varies depending on the force gauge and the attachments combined.
Sampling rate 2000 data/sec
Display update 16 data/sec
Output(*2) USB, Serial(RS232C), Analog(Approx. +/-2V),Comparator, Overload, Sub comparator, USB memory
* USB memory stick is not included.
Functions of motorized test stand Stroke limit, Overload prevention(*1), Force control(*2), Emergency stop
*1 We cannot assure the perfect prevention against sensor break-down.
*2 The value of force control is specified by the absolute value.
Power of motorized test stand Free input AC100V to 240V
Operating temperature/Humidity Temperature: 0 to 40 degree Celsius / Humidity:20 to 80%RH
Accessories Instruction manual, Inspection certificate, Power cable, 2 pcs of spare hues, Driver CD-ROM(including software for data log “ZT-Logger”), Graphing software “Force-Recorder Professional”.
