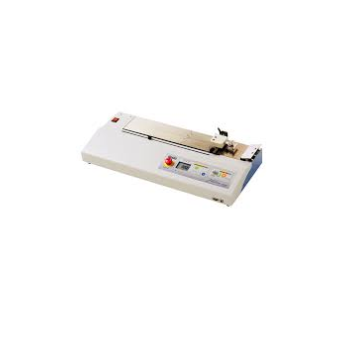

Máy thử kéo nén IPT200 series Imada

Mã sản phẩm: IPT200 series |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy thử kéo nén
Model: IPT200 series
Hãng: Imada
Thông tin sản phẩm

- Exclusive for 180 degree adhesion test of tape, stickers and so on.
- IPT200-5N: Exclusive for adhesion test of embossed career tape. It can perform test partly according to JIS C0806-3:2010 “Packaging of components for automatic handling-Part 3: Packaging of surface mount components on continuous tapes” (ISO 60286-3:2007).
- Easy sample setting and simple operation.
- Easy data analysis with an included graph drawing software.

Thông số kỹ thuật


Model IPT200-5N IPT200-20N IPT200-50N
Accuracy +/-0.2% F.S. +/-1 digit
Capacity 5N(500gf) 20N(2kgf) 50N(5kgf)
Resolution 0.001N 0.01N
Overload Approx. 150% F.S.(It warns with light flashing and buzzer when the force is over 110% of capacity.)
Sampling rate 1000 data / sec. at maximum
Testing speed 120, 300, 500, 1000, 1500mm / min (switchable)
Stroke Travel of a load cell: Approx.400mm (Peeling length: Approx.200mm)
Peel angle 165-180 degree (Height and angle are adjustable.)
Testable width of samples 8 to 88mm (with scale 8,12,16,24,32,44,56,72,88 on table) 1 to 20mm (Without scale on table)(*1)
Testable thickness of samples 0.5mm at maximum 0.2mm at maximum
Safety device Emergency stop button, Overload prevention (Only when the power is turned ON)
Power AC100 to 240V free input (*2)
Weight Approx.11kg
Operating environment Temperature: 0 to 40 degree Celcius / Humidity: 20 to 80% RH
Accessory Driver CD-ROM, ZP-Recorder (graph drawing software), Power cable, Inspection certificate, Instruction manual
Attachment to clamp sample(5N: a clip, 20/50 N: a film grip)
