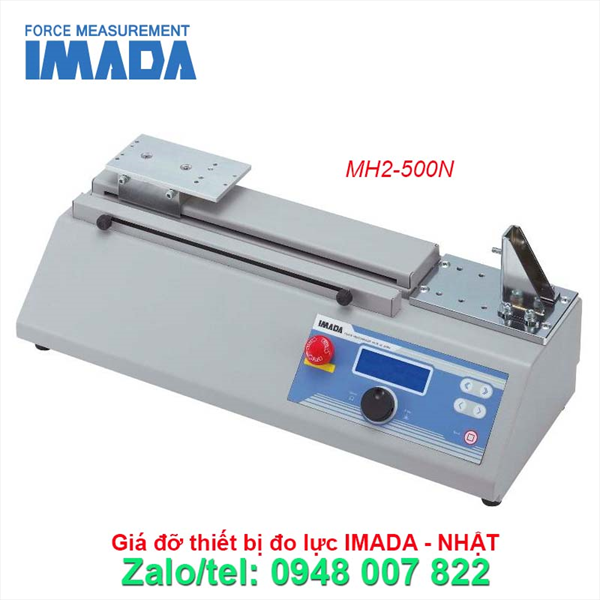

Máy thử kéo nén MH2-500N Imada

Mã sản phẩm: MH2-500N |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

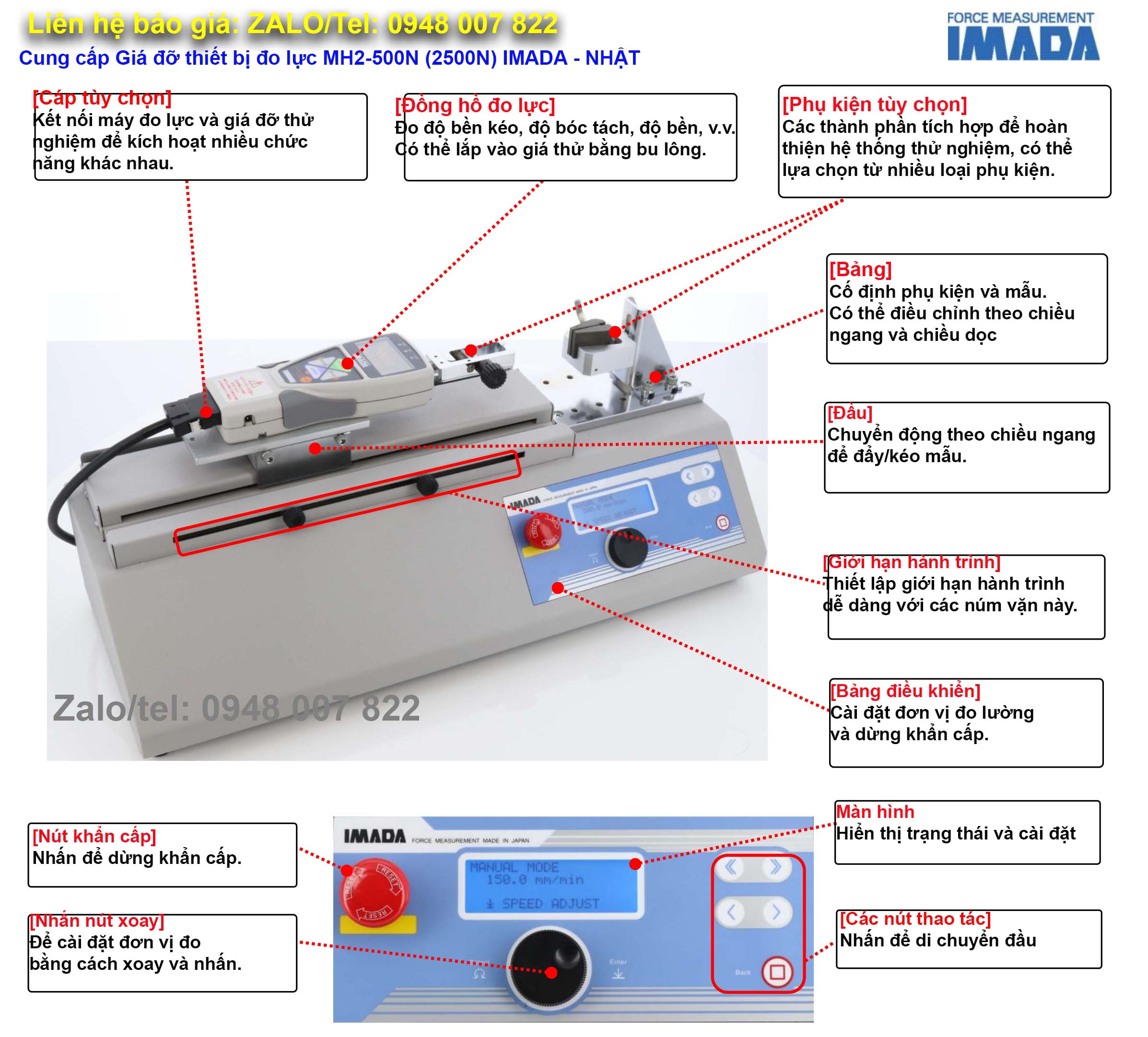

Máy thử kéo nén
Model: MH2-500N
Hãng: Imada
Thông tin sản phẩm
Model MH2-500N
Capacity 500N (50kgf)
Maximum height of a sample Please refer “t” of dimension below.
Deflection at maximum load 0.5mm or less
Test speed 10-300mm/min
Applicable gauge Force Gauges and Load cell DPU series (up to 500N) except High capacity model
Function Manual mode, JOG mode, Cycle mode
Digital setting of speed, counter, timer
Control Emergency button, Motion control by force(*1), Overload prevention(*1)(*2)
Safety devices Stroke limit, Emergency button
Power AC100V-240V, free input
Size Please refer dimension below.
Weight Approx. 14kg
Option Speed range change, Linear scale, Adding I/O connecter type 2,Length meter
Accesory Power cord, Spare fuse, Tool, Manual
