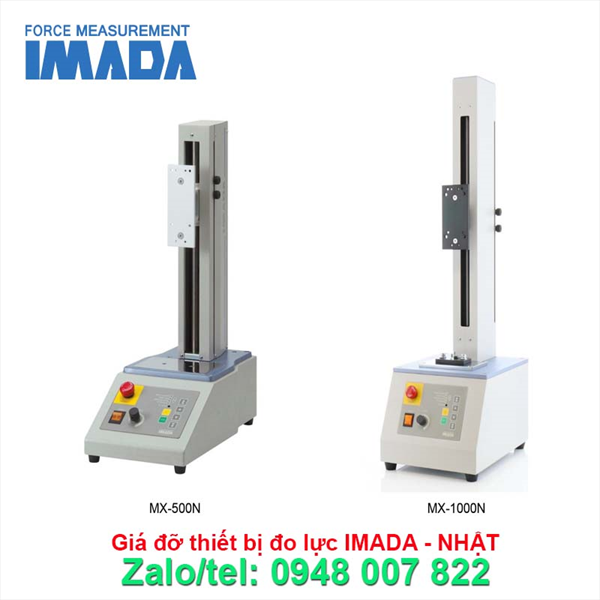

Máy thử kéo nén MX series Imada

Mã sản phẩm: MX series |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy thử kéo nén
Model: MX series
Hãng: Imada
Thông tin sản phẩm
Model MX-500N MX-1000N MX-5000N
Capacity 500N (50kgf) 1000N (100kgf) 5000N (500kgf)
Stroke when a force gauge is mounted(*1) 235mm 420mm 340mm
Test speed 10 to 300mm/min 8 to 240mm/min 10 to 300mm/min
Gauges that can be combined (*2) Any force gauges except high capacity model force gauges Mechanical / Digital Force gauges
Load cell can NOT be combined.
Function Manual mode, Single mode, Continuous mode
Control Emergency button, Operation control by load value(*3), Overload prevention(*3)(*4)
Safety devices Stroke limit, emergency stop button
Power AC100V to 240V, free input
Size Please refer to dimensions.
Weight Approx. 13kg Approx. 24kg Approx. 30kg
Option Long stroke, Speed range change, Encoder
Accessory Grip mounting adapter(GF-1) Grip mounting adapter(GF-2)
Instruction manual, Power cable, Gauge mounting plate, Cover, Spare fuse, and Tools.
