Modun đầu ra Datexel Modbus DAT3011, DAT3022 , DAT3024, DAT10024 , DAT3028, MCM-5AD

Thông tin sản phẩm

Modun đầu ra Datexel Modbus DAT3011, DAT3022 , DAT3024, DAT10024 , DAT3028, MCM-5AD


The DAT3020 series from Datexel is a range of Modbus analog output cards. These cards or modules have both voltage and current outputs either 0-10V or 4-20mA and are isolated from the input, output and power supply. They are available with either 2, 4 or 8 channels. The DAT3011 is a Modbus slave with 2 analog inputs (Thermocouple, RTD's mA, Resistance, Potentiometers, mV and voltage) and 2 analog outputs(4-20mA). It also has 3 digital inputs and outputs. Combining these analog output cards with the analog input cards, and the digital IO cards with the DAT9000 controllers make Datexel the smart choice where Data Acquisition is needed.

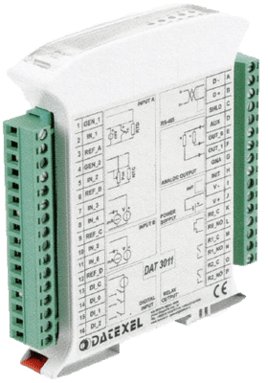

DAT3011

Signal Conditioning Modbus RTU DAT3011

Input T/C's, RTD, mV, mA, Pots, Res.

Output mA, 2 Relay, RS485.

DAT3022 RS485 2 Channel

Modbus to 4-20mA Output

Input RS485.

Output Voltage & Current.

DAT3024 RS485 4 Channel

RS485 to 4-20mA and Voltage output Module

Input RS485.

Output Voltage & Current.

DAT10024 RS485 4 Channel

Isolated ModBus RTU 4-20mA output DAT10024

Input RS485.

Output Current or Voltage.

DAT3028 RS485 8 Channel

RS485 to Voltage output Module, 8 Channels

Input RS485.

Output Voltage.

MCM-5AD

Modbus Analog IO

Input T/C's, Current, RTD, Volts, Thermistor, Potentiometer.

Output 4-20mA, 0-20mA, 0-1V, 0-10.

Comms Modbus and CANbus.
