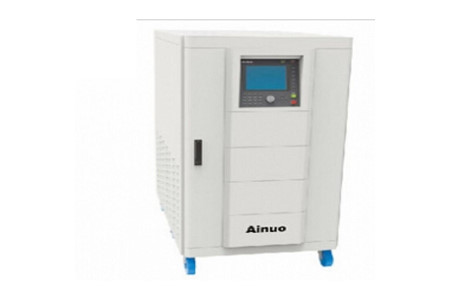

Nguồn cấp điện xoay chiều Ainuo ANFS015A(F), ANFS030A(F), ANFS045A(F), ANFS060A(F), ANFS090A(F), ANFS120A(F), ANFS180A(F)

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Nguồn cấp điện xoay chiều Ainuo ANFS015A(F), ANFS030A(F), ANFS045A(F), ANFS060A(F), ANFS090A(F), ANFS120A(F), ANFS180A(F)

Thông tin sản phẩm

Nguồn cấp điện xoay chiều Ainuo ANFS015A(F), ANFS030A(F), ANFS045A(F), ANFS060A(F), ANFS090A(F), ANFS120A(F), ANFS180A(F)


Specification

Model/Specification ANFS015A(F) ANFS030A(F) ANFS045A(F) ANFS060A(F) ANFS090A(F) ANFS120A(F) ANFS180A(F)
Input 3-phase 4-wires,AC: 380V±57V,50/60Hz±3Hz
Output Capacity 15kVA 30kVA 45kVA 60 kVA 90 kVA 120 kVA 180kVA
Output Frequency 45.0~240.00Hz
Frequency Stability ≤0.02%
Output Mode 3 phaes mode, Seperated 3 phaes mode,parallel mode
Output Current 110V 45.4A 90.9A 136.3A 181.8A 272.7A 363.6A 545.4A
220V 22.7A 45.4A 68.2A 90.9A 136.3A 181.8A 272.7A
Accuracy Voltage Resolution:0.1V
Accuracy:0.2%×reading+0.2%×F.S. (45Hz—65Hz)
Current Resolution:0.1A/1A
Accuracy:0.3%×reading+0.3%×rated output
Frequency Resolution:0.1Hz Accuracy:0.05%
Power Resolution: 0.1kW / 0.01kW / 0.001kW
Accuracy: 0.45%×reading+0.45%×F.S. (45Hz—65Hz)
Line Regulation ≤1%
Load Regulation ≤1%
Voltage Distortion Linear load: THD<1.5%(110V±10%,220V±10%,45-65Hz);
Transient time 20ms
Phase retardation 120°+2°
Phase unbalance factor ≤1%
Crest factor 1.41±0.1
Modulating voltage range ≤3V
Over Power 105%≤Output<110% the output will be stopped within 15 Sec.
110%≤Output<210% the output will be stopped within 5 Sec.
200%≤Output<300% the output will be stopped within 2 Sec.
300%≤Output the output will be stopped immediately
Protection Mode IGBT hot、IGBT OverCurrent、Transformer hot、Input Lack Voltage、Input Over Voltage、Output Lack Voltage、Output Over Voltage、Output Over Current、Output Over Power、Lack Output Phase
Voltage Drop Compensation 0.000~0.500Ω
Softstart Time 0.0~99.9S
Efficiency >86%
Shortcut Group 7 groups
Online Voltage Adjustment The output voltage and frequency(45-65Hz) can be adjusted online under running status.
Communication/ Communication:RS232(Standard)、RS485(Options)、GPIB(Options)、Ethernet(Options)
Remote Control Remote Control:Analog Control(Options)
Environment Temperature:0~40℃ Humidity:20~90%RH
Dimension W×H×D(mm) 600*1130*1018 700*1330*1218 800*1730*1418
Weight(kg) 280 330 470 590 780 1030 1320
