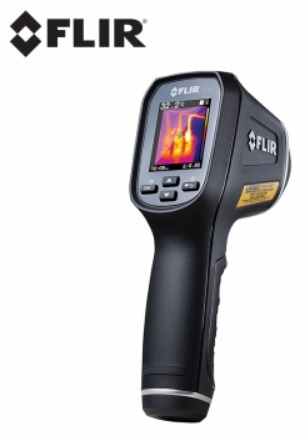

Súng đo nhiệt độ, Thiết bị đo nhiệt độ từ xa FLIR TG165

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Súng đo nhiệt độ, Thiết bị đo nhiệt độ từ xa FLIR TG165

Thông tin sản phẩm

Súng đo nhiệt độ, Thiết bị đo nhiệt độ từ xa FLIR TG165


OVERVIEW
Detector Type
Focal plane array (FPA), uncooled microbolometer
IR Resolution
80 × 60 pixels
Laser
Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger
Memory Expansion
32 GB SD card maximum
Memory Type
Micro SD card
Spectral Range
8–14 µm
Tripod Mounting
1/4 in.-20 on handle bottom
ENVIRONMENTAL
Humidity (Operating and Storage)
0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Operating Temperature Range
-10°C to 45°C (14°F to 113°F)
Storage Temperature Range
-30°C to 55°C (-22°F to 131°F)
IMAGING & OPTICAL
Camera size (L x W x H)
186 mm x 55 mm x 94 mm (7.3 in x 2.2 in x 3.7 in)
Camera weight incl battery
0.312 kg (11 oz)
Color palettes
Hot Iron, Rainbow, Grayscale
Field of view (FOV)
50° x 38,6°
Focus
Focus free
Gallery
17565
Image Frequency
9 Hz
Minimum Focus Distance
0.1 m (4 in.)
Minimum Measurement Distance
26 cm (10 in.)
MEASUREMENT & ANALYSIS
Accuracy
±1.5% or 1.5°C (2.7°F)
Center spot
Yes
Object Temperature Range
-25°C to 380°C (-13°F to 716°F)
Thermal Sensitivity/NETD
<150 mK
METER DATA
Display
2.0 in. TFT LCD
POWER
Battery operating time
>5 hours of continuous scanning with lasers
Battery type
Rechargeable Li ion battery
Battery voltage
3.7 V
Charging system
Battery is charged inside the camera
Charging Time
4 hours to 90%, 6 hours to 100%
Power Management
Adjustable; OFF, 1 min., 2 min., 5 min., 10 min.
Battery charge life
30 days minimum
SHIPPING INFORMATION
Includes
Wrist strap lanyard, 8 GB Micro SD card, power supply with separate USB cable, printed documentation
STORAGE MEDIA
Image Storage Capacity
75 000 pictures with included 8 GB Micro SD card
Saved image format
Bitmap (BMP) image with temperature and emissivity
