Thiết bị kiểm tra bản mạch điện tử Hioki FA1817, FA1811, FA1283, FA1116

Thông tin sản phẩm

Thiết bị kiểm tra bản mạch điện tử Hioki FA1817, FA1811, FA1283, FA1116

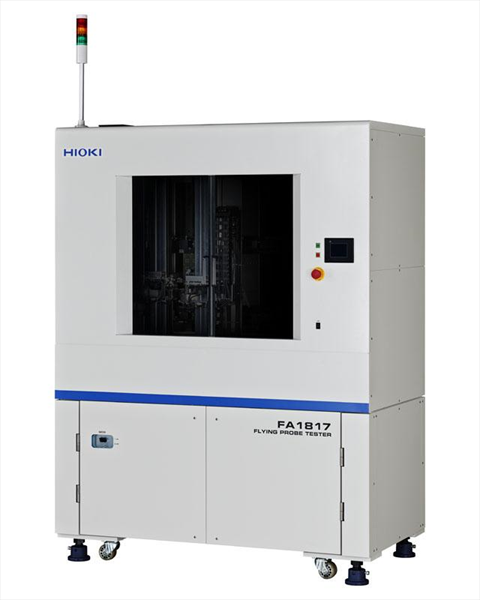

Double-sided Bare Board Inspection Tool | FLYING PROBE TESTER FA1817


FLYING PROBE TESTER   FA1817

Vertical type 4 arm double-sided inspection
Open via defect detection with low resistance measurement

Double-sided Bare Board Inspection Tool | FLYING PROBE TESTER FA1817


• Vertical double-sided bare board inspection machine • Open via defect detection with low resistance measurement • Detect pattern shape abnormality and voids with super insulation resistance testing

FLYING PROBE TESTER FA1811

FLYING PROBE TESTER   FA1811

High precision contact
in a space of square 10 μm.

FLYING PROBE TESTER FA1811


• Achieve both high precision contact and high-speed probing. • Double test method delivers an operation rate of 100%.

FLYING PROBE TESTER FA1283

FLYING PROBE TESTER   FA1283

Max.100 points/s ultra-high speed inspection
High-precision probing 15μm

FLYING PROBE TESTER FA1283


• Max.100 points/s ultra-high speed inspection • High-precision probing 15μm

Data Creation System for Bare Boards Testing | UA1781

FEB-LINE INSPECTION DATA CREATION SYSTEM   UA1781

1/2 Data Generation Time
With New Platform

Data Creation System for Bare Boards Testing | UA1781


• 3-in-1 for editing, test-point generation, and built-in component support • New Windows-optimized algorithm • Free from data volume restrictions for increased freedom • Added new commands to reduce data generation time by half

FLYING PROBE TESTER FA1116-03

FLYING PROBE TESTER   FA1116

High-speed Testing at Up to 100 Points/sec. with Half the Impact Mark Depth

FLYING PROBE TESTER FA1116-03


• Reduced-impact link probes CP1072-01(option) • Laser height-adjustment Unit FA1950-06(option) • Reduced fine pattern test times • High-speed pattern testing using capacitance measurement
