Thiết bị Micromanipulator 4060 Manual Probe Station

Thông tin sản phẩm

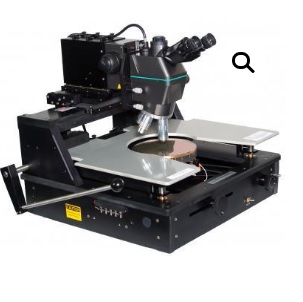

Thiết bị Micromanipulator 4060 Manual Probe Station


The Micromanipulator Model 4060 probe station is a high efficiency general purpose 6 – 8” (150 – 200mm) manual analytical probe station. The 4060 is designed for ease of use in everyday failure analysis, device characterization, and reliability testing applications. The 4060 station combines the value of efficient use with the confidence of consistent, accurate electrical and mechanical performance. The 4060 is the most efficient, stable and reliable 150 / 200mm general purpose probe station in the industry.

Available options for the model 4060 probe station allow you to configure it for your specific needs. Probe card holders, thermal chucks, manipulators, unique probe holders, vibration isolation tables, light tight enclosures (LTEs) and camera systems are popular accessory options. Station configuration options include an independent microscope lift and lock lever assembly, platen lift with adjustable microscope lift delay and an integrated dark – dry environment that supports low temperature, frost free probing.  The 4060 supports three temperature ranges:

  • Ambient (room temperature) to 400C
  • 0C to 400C
  • -65C to 400C
