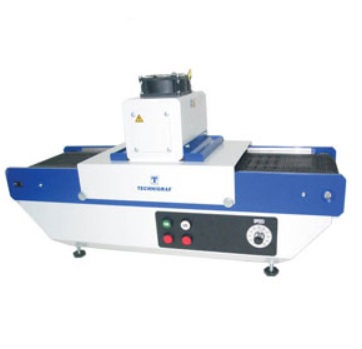

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI / E

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI / E

Thông tin sản phẩm

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI / E


The extended version of the AKTIPRINT Mini/e table top dryer has more reserve capacity than the original AKTIPRINT Mini and can be used for continuous operation for a broad range of small format applications. Modern power electronics stabilize the continuously adjustable lamp output (up to 120 W/cm) against fluctuating line voltage and when using lamp types of differing spectral emission. This ensures consistent drying results.

Technical data:

Power of UV tube max. 120 W/cm
UV spectrum 200 – 400 nm (ozone free tube and special spectra on request)
Standard version Ready to use, compact table unit with 1 UV tube, Hg.
Inclusive quartz glass pane.
Half focussing aluminium reflector.
Direct cooling of the reflector.
Material suction fan / belt suction.
Teflon coated, endless, glass fibre conveyor belt.
Features Ozone exhaust not necessary.
High, stabilized and variable power of the UV tube up to 120 W/cm.
Improved cooling of material.
Useful for longer production operations.
Conveyor belt speed 3-20 m/min., variable
Conveyor belt Teflon coated, endless, glass fibre conveyor belt, black, antistatic
Conveyor belt width Mini/e 12: 11 cm, Mini/e 18: 17 cm
Max. pass through width approx. 22 cm
