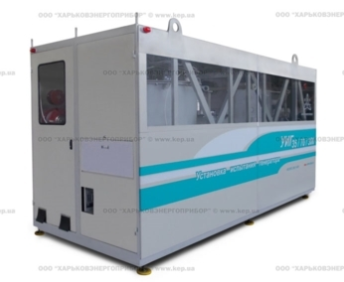

Thiết bị thử nghiệm máy phát UIG-35/70-1400 KEP

Mã sản phẩm: UIG-35/70-1400 |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị thử nghiệm máy phát
Model: UIG-35/70-1400
Hãng: KEP
Thông tin sản phẩm
- Generator tester UIG-35/70-1400 designed for testing the dielectric strength of the generators windings by line frequency AC voltage, test shielded conductors, as well as constant voltage test bus systems according to the requirements of the "Rules for Electrical Installation" and RD 34.45-51.300, with a maximum load capacity up to 1400 kVA
- Supply voltage 3-phaseAC (50 Hz), : 380 ± 38
- Consumption power, kW∙A, max : 250
- Continuous operation at maximum capacity, min, max : 20
- Break after continuous use, min, min : 40
- Output power, kV∙A : 1400
- Capacitance range of objectsTest, uF : 0,01- 1,5
- Q-factor, min : 20
- Maximum operating voltage AC test mode of the stator winding, kV : 35
- Maximum operating voltage AC test mode of the busway, kV : 70
- Maximum operating voltage is rectified current in the test mode leakage currents, kV : 100
- Reduced error measuring current and voltage, max,% : 3
- Treshold current protection high-voltage side, A : 32
- Treshold current protection low-voltage side, no more, A : 350
- Dimensions L × W × H, mm : 4400 × 2000 × 2100
- Warranty life, h  : 1200
- Weight, kg, no more : 13,000
