Xe thử nghiệm cáp ngầm ETL-110K KEP

Mã sản phẩm: ETL-110K |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Xe thử nghiệm cáp ngầm
Model: ETL-110K
Hãng: KEP
Thông tin sản phẩm

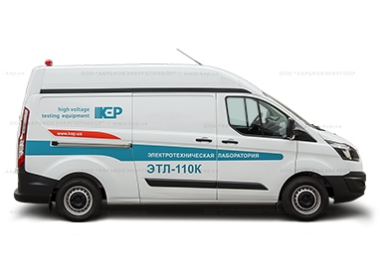

- Cable test van ETL-110K is a combination of testing equipment mounted in a van and designed to perform the following:
- High-voltage testing with AC voltage of up to 50 kV;
- High-voltage testing with DC voltage of up to 60 kV;
- Burning the defective insulation of cables and its further aftreburing;
- Determining the distance to the fault with OTDR RIF-7 (RIF-9);
- Finding cable faults using the induction method with the audio-frequency generatorGZCH-2500 and the receiver P-900;
- Finding cable faults using acoustic method with the acoustic generator GAUV-32 and the receiver P-900;
- Measuring the parameters of power transformers using the low-voltage tester BNI;
- Determining the capacitance and dissipation factor of electrical facilities with voltages of up to 10 kV.
- The price of ETL-110K incudes the trainging of the Customer's personnel. ETL-110K manufacturing time is 30 days.
