Xe thử nghiệm cáp ngầm ETL-35K KEP

Mã sản phẩm: ETL-35K |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

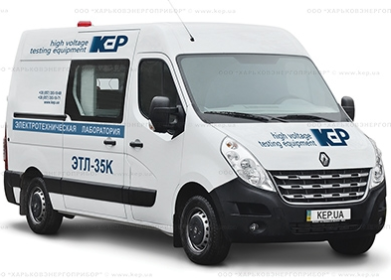

Xe thử nghiệm cáp ngầm
Model: ETL-35K
Hãng: KEP
Thông tin sản phẩm
- Cable test van ETL-35K is a combination of testing equipment mounted in a van and designed to perform the following:
- High-voltage testing with AC voltage of up to 50 kV;
- High-voltage testing with DC voltage of up to 60 kV;
- Burning the defective insulation of cables and its further aftreburing;
- Determining the distance to the fault with OTDR RIF-7;
- Finding cable faults using the induction method with the audio-frequency generatorGZCH-2500 and the receiver P-900;
- Finding cable faults using acoustic method with the acoustic generator GAUV-32 and the receiver P-900;
- Measuring the parameters of power transformers using the low-voltage tester BNI;
- Determining the capacitance and dissipation factor of electrical facilities with voltages of up to 10 kV.
- The price of ETL-35K incudes the trainging of the Customer's personnel. ETL-35K manufacturing time is 30 days.
