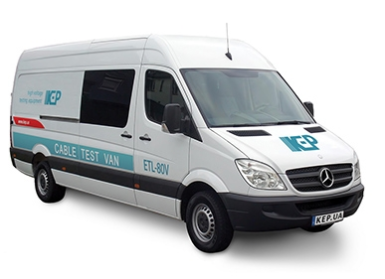

Xe thử nghiệm cáp ngầm ETL-80V KEP

Mã sản phẩm: ETL-80V |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Xe thử nghiệm cáp ngầm
Model: ETL-80V
Hãng: KEP
Thông tin sản phẩm
- ETL-80V is a modular diagnostic and test equipment, which is designed for testing and fault location of both LV and MV cables. The key parameters are designed flexible to satisfy customer’s specific requirements.
- DC cable testing up to 80 kV;
- Converting high-resistive cable faults into lowresistive with a use of burn generator;
- Surge energy up to 2400 J;
- Precise fault prelocating using Time‑Domain Reflectometer RIF‑9;
- Cable route tracing with a use of 200 W lowfrequency generator and receiver;
- Precise pinpointing using a surge wave generator with a ground microphone.
