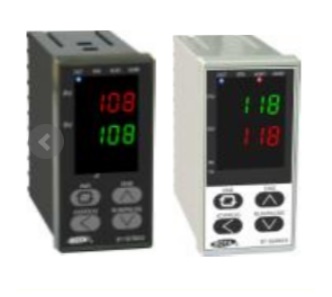

Bộ điều khiển nhiệt độ KDS BT

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ điều khiển nhiệt độ KDS BT

Thông tin sản phẩm

Bộ điều khiển nhiệt độ KDS BT


Table 1

Model

Function Description

L2

Class 0.2 mA variable current output. 0 ~ 10mA / 2.2KΩ, 4 ~ 20mA / 1kΩ

L21

Class 0.2 mA self-isolated transmission current output. Load capacity as above

J1

Relay switch output, normally open + normally closed. Contact capacity: 8A / 220V

J3

Triac non-contact zero-crossing switch output. Normally open type, 1A / 600V. Suitable for AC loads

J4

Triac non-contact zero-crossing switch output. Normally closed, 1A / 600V. Suitable for AC loads

J5

Small relay switch output, normally open + normally closed. Contact capacity: 2A / 220V

J6

Two relay switch output modules, normally open × 2. Contact capacity: 5A / 220V

K

Solid state relay (SSR) trigger output. 12V ~ 15V / 45mA

K1

Single SCR Zero-Crossing Trigger Output

K2

Two TRIAC zero-crossing trigger outputs

V0

Feed output (sensor power). 5V / 50mA

V1

Feed output (sensor power). 12V / 50mA

V2

Feed output (sensor power). 24V / 50mA

V21

Feed output (with electromagnetic flowmeter). Self-isolated 24V or ± 12V / 100mA

R

RS232 serial communication interface. Communication distance≤15m

S

RS485 serial communication interface. Communication distance≤1Km

S1

RS485 serial communication interface. Self-isolated, communication distance ≤1km

D

Data interface module. Data recording system with BT recorder

l  Display: double four-digit highlight LED display;
