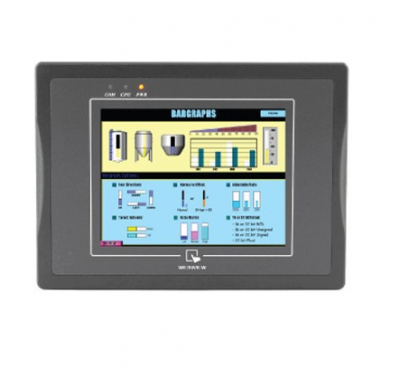

Bộ giao diện Datexel HMI Touch Screen Panels

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ giao diện Datexel HMI Touch Screen Panels

Thông tin sản phẩm

The TD240-AD is a 3.5 inch Touch Screen HMI with a built in PLC. It has 2 Serial ports RS232/RS485 Modbus The TD240-11AD option add Analog and Digital IO. It can accept inputs from 4 analog sensors and 16 digital inputs. It also has 4 0-10Volt analog outputs and 16 solid state relays up to 700mA each. The TD240-11ADcan accept inputs from K type Thermocouples, S type Thermocouples, J type Thermocouples, T type Thermocouples, R type Thermocouples, E type Thermocouples. Pt100, Ni100, Pt1000 and Pt500 Resistance temperature detectors. NTC10K Ohm and PTC1 K Ohm Thermistors. 0-20mA, 4-20mA, 0-20mV, 0-1Volt and 0-10Volts.
The output is 0-10V 16 bit and can be set up as a control output with P, PI, PID or PD. Other function blocks include timers, up counters, down counters, mathematics, logic functions and rescale.
The TD410 is a 4.3 LCD TFT Touch screen HMI Windows CE with 56,000 colors. The TD410 runs on an ARM processor with 4 GB memory and 512 MB DDR3 Ram. The TD410 has a RS485 serial port, Ethernet port and 2 USB ports.
The TD710 is a 7 inch Touch Screen HMI using Windows CE as an operating system. The display is an LCD TFT and has 800 x 480 pixels with 16 million colors. The TD710 runs on a 1 GHz ARM processor with 512MB DDR3 memory and has the following Communication ports RS232, RS485, USB, and Ethernet. The protocols on these ports are CAN open, Modbus Master/Slave and Modbus TCP/IP.
The TD810 is a 10.4 inch Human Machine Interface. The display has a resolution of 800 x 600 pixels and is a LCD TFT touch screen. The hardware uses a 1 Ghz ARM CORTEX A8 processor with 4 GB of memory and 512 MB of RAM.

The TD820 is a 12 inch Industrial HMI Touch Panel. The display has a resolution of 1280 x 800 pixels and is a LCD TFT touch screen. The hardware uses a 1 Ghz ARM CORTEX A8 processor with 4 GB of memory and 512 MB of RAM.

TD240-11AD

HMI with integrated PLC's=

Input 4 x Thermocouples, 4 x Voltage, 2 RTD,
Output 4 x 0-10V
Digital

TD410

4 inch Touch Screen HMI TD410

Comms RS485, Ethernet, USB
Input with options Thermocouple, RTD, Voltage, Current, Digital I/O
Output 0-10V, 4-20mA Digital IO

TD710

7 inch HMI Screen TD710

Comms 2 x RS485, Ethernet, RS232, 2 x USB
Input with options Thermocouple, RTD, Voltage, Current, Digital I/O Output 0-10V, 4-20mA Digital IO

TD810

10 inch human machine interface TD810

Comms 2 x RS485, 2 x Ethernet, RS232, 2 x USB
Input with options Thermocouple, RTD, Voltage, Current, Digital I/O Output 0-10V, 4-20mA Digital IO

TD820

12 inch industrial hmi touch panel TD820

Comms 2 x RS485, 2 x Ethernet, RS232, 3 x USB
Input with options Thermocouple, RTD, Voltage, Current, Digital I/O Output 0-10V, 4-20mA Digital IO

Industrial Panel PC's

Range of HMI panels

The TD750 is a 7 inch Windows 7 Panel PC running on Windows 7 Pro and has an Intel ® Celeron Quad Core ® J1900 Processor at 2Ghz. It also has a 32 GB Solid State Hard drive 2GB DDR3 ram. The display is a 24 bit LVDS and has 800 X 600 pixels with LED back-light display.
The TD850 is a 10 Inch Windows 7 Panel PC running on Windows 7 Pro and has an Intel ® Celeron Quad Core ® J1900 Processor at 2GHz. It also has a 64 GB Solid State hard drive 2GB DDR3 RAM. The display is a 24 bit LVDS and has 800 x 600 pixels with LED back-light display.
The TD860 is a 12 inch Industrial Panel PC running on Windows 7 Pro and has an Intel ® Celeron Quad Core ® J1900 Processor at 2GHz. It also has a 64 or optional 128 GB Solid State hard drive 2GB DDR3 RAM or optional 4GB. The display is a 24 bit LVDS and has 1280 x 800 pixels with LED back-light display.
The TD900 is a 15 inch Windows 7 Panel PC running on Windows 7 Pro and has an Intel ® Celeron Quad Core ® J1900 Processor at 2GHz. It also has a 64 or optional 128 GB Solid State hard drive 2GB DDR3 RAM or optional 4GB. The display is a 24 bit LVDS and has 1024 x 768 pixels with LED back-light display. The TD910 is an 18 inch Touchscreen Panel PC running on Windows 7 Pro and has an Intel ® Celeron Quad Core ® J1900 Processor at 2GHz. It also has a 64 or optional 128 GB Solid State hard drive 4GB DDR3 RAM. The display is a 24 bit LVDS and has 1336 x 768 pixels with LED back-light display. The TD920 is a 21 inch HMI Panel PC running on Windows 7 Pro and has an Intel ® Celeron Quad Core ® J1900 Processor at 2GHz. It also has a 64 or optional 128 GB Solid State hard drive 4GB DDR3 4RAM. The display is a 24 bit LVDS and has 1920 x 1080 pixels with LED back-light display.

TD750

Windows 7 Panel PC with Modbus

7 inch
Modbus, Canopen, Modbus TCP/IP

TD850

10 inch Windows 7 Panel PC TD850

10.4 inch
Modbus, Canopen, Modbus TCP/IP

TD860

12 inch Industrial Panel PC TD86=

12 inch
Modbus, Canopen, Modbus TCP/IP

TD900

15 inch Windows 7 Panel PC TD900

15 inch
Modbus, Canopen, Modbus TCP/IP

TD910

18 inch Touchscreen Panel PC TD910

18 inch
Modbus, Canopen, Modbus TCP/IP

TD920

21 inch HMI Panel PC TD920

21 inch
Modbus, Canopen, Modbus TCP/IP
