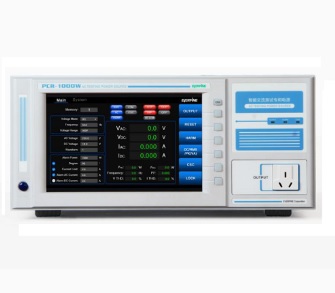

Bộ nguồn AC hãng EVERFINE PCR1000W PCR2000W PCR4000W PCR8000W PCR12000W

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ nguồn AC hãng EVERFINE PCR1000W  PCR2000W  PCR4000W  PCR8000W  PCR12000W

Thông tin sản phẩm

Bộ nguồn AC hãng EVERFINE PCR1000W  PCR2000W  PCR4000W  PCR8000W  PCR12000W


Model

PCR1000W

PCR2000W

PCR4000W

PCR8000W

PCR12000W

Rated input

Voltage

AC 85V~260V

Frequency

1Φ,50 Hz /60Hz

Power factor

0.94

Rated output AC mode

Voltage

1V~150V;2V~300V(150V/300VRange)

Maximum current

10A/5A

(150V/300VRange)

20A/10A

(150V/300VRange)

40A/20A(150V/300VRange)

80A/40A

(150V/300VRange)

120A/60A

(150V/300VRange)

phase

1

Power capacity

1000VA

2000VA

4000VA

8000VA

12000VA

Peak current

 4 times than maximum current(RMS)

Frequency

1.0Hz~500.0Hz

Rated Output DC mode ,AC+DC mode

Voltage

1.4~212V/2.8~424V(150VRange/300VRange)

Maximum current

5.0A/2.5A(150V/300VRange)

10A/5A(150V/300VRange)

20A/10A(150V/300VRange)

40A/20A(150V/300VRange)

60A/30A(150V/300VRange)

Output Power

500VA

1000VA

2000VA

4000VA

6000VA

Voltage output stability

≤0.1%

Voltage output accuracy

≤1%setting+0.2V

frequency stability

≤0.03%Reading+0.1V

Efficiency of output frequency

≤0.016%setting+0.01Hz

THD

≤0.2%(40.0Hz~65.0Hz);≤0.3% (65.1Hz~500.0Hz)

Transient reaction time

<60μs

Load influence

≤0.2%+0.2V

Power voltage influence

≤0.1%

Power efficiency

≥75%

Measurement

Voltage

Range

75V/150V/300V

Resolution

0.1V

Basic accuracy

±(0.2%Reading+0.2%Range +1digit)

Current

Range

0.5A/1A/2A/5A/10A

1A/2A/5A/10A /20A

2A/5A/10A/20A/40A

5A/10A/20A/40A/80A

7A/15A/30A/60A/120A

Resolution

0.001A(0~9.999A);0.01A(10A~99.99A)

Basic accuracy

±(0.2%Reading+0.2%Range +1digit)

Power

Resolution

0.1W(0.1W~999.9W);1W(more than 1000W)

Basic accuracy

±(0.3%Reading+0.2%Range +1Digit)
