Đồng hồ áp suất có tiếp điểm KDS KTS900

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

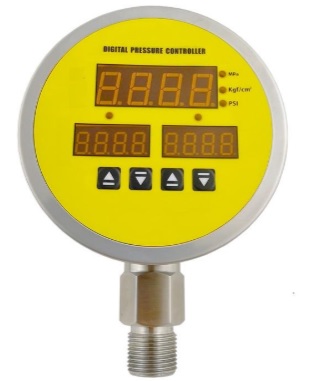

Đồng hồ áp suất có tiếp điểm KDS KTS900

Thông tin sản phẩm

Đồng hồ áp suất có tiếp điểm KDS KTS900


Technical characteristics
☆ Three-screen display (the main screen displays real-time pressure, and the secondary screen displays upper and lower alarm values)
☆ 100mm304 stainless steel housing, optional axial or radial installation
☆ Easy and intuitive setting of alarm points
☆ Multiple pressure units switch, error clear function
☆ It is completely equivalent to the wiring method of mechanical electric contact pressure gauge
Parameter index
Pressure range (-0.1 ~ 0 ... 0.1 0.25 0.4 0.6 1.0 1.6 2.5 4 6 10 16 25 40 60 100 160) MPa
Micro pressure (0 ~ 1 2 5 10 25 40 60 100) kPa
Overload capacity: 150% (> 10MPa) 200% (≤10MPa)
Output form: relay output, (high alarm low alarm public line) wiring method same as electrical contact pressure gauge
Output relay capacity: 24V 1A 220V 1A
Power supply: 220V AC; 24V DC; 380V AC optional
Setting range: control points can be set in the full range
Accuracy:       0.5% FS
Measurement medium: gas, water, oil
Operating temperature: -20 ~ 80 ℃
Case diameter:         100mm
Joint material:          304 stainless steel
Shell material:         304 stainless steel
Product certification: CE certification ROHS certification
