Đồng hồ chỉ thị lưu lượng Reinhausen MESSKO MFLOC 2.0

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

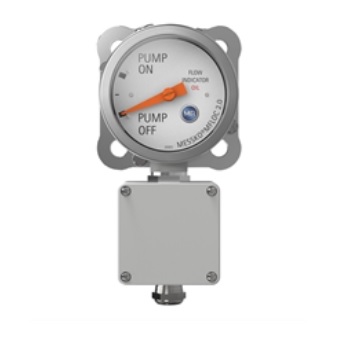

Đồng hồ chỉ thị lưu lượng Reinhausen MESSKO MFLOC 2.0

Thông tin sản phẩm

Đồng hồ chỉ thị lưu lượng Reinhausen MESSKO MFLOC 2.0

MESSKO MFLOC 2.0 detects pump failure in power transformer oil or water cooling systems immediately and reliably. A specially designed paddle is placed as flow resistance in the circulating cooling liquid to monitor the flow of the cooling fluid. When the pump is on, the flow pressure applied to the paddle, ensures that it rotates to an end stop and functions safely in case of laminar or non-laminar medium flow.

The new generation is based on the MESSKO MFLOC, a product that has been in the product portfolio since 2010. It was further developed, subjected to functional tests and optimized. This ensures that there are no changes to the predecessor model during assembly and retrofit installations.

THE HIGHLIGHTS:

  • Quick and easy installation - no paddle regulation or adjustment for different flow velocities required
  • Separate sensor and indicator components with patented magnetic coupling for absolute air tightness
  • Two permanently set switching contacts (changeover)
  • Available for oil and other cooling fluids, and in an additional model for water cooled circulations
