Đồng hồ đo độ dày Peacock EG-1, EG-2, PS-1,


Easy measurement of thickness, outer diameter, inner diameter and depth.
Handy size with excellent functions.
Minimum reading : 0.1mm.
EG-1 for measurement of inner diameter, outer diameter and thickness.
EG-2 for measurement of inner diameter, outer diameter and thickness and depth.
 Snap Calipers; EG-1, EG-2

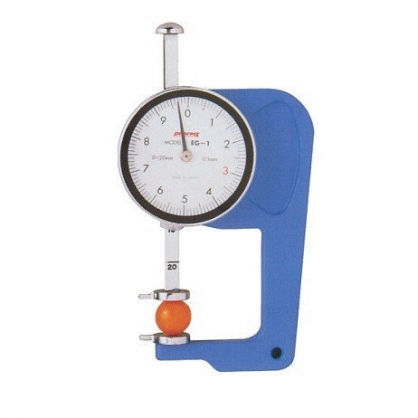

Model EG-1
Graduation 0.1mm
Range ; Measurement of thickness 0 ~ 20mm
Range ; Measurement of inner diameter 3 ~ 23mm

EG-1
Model EG-2
Graduation 0.1mm
Range ; Measurement of thickness 0 ~ 20mm
Range ; Measurement of inner diameter 3 ~ 23mm
Range ; Measurement of depth 0 ~ 20mm
EG-2

EG-1 EG-2
EG-1 EG-2


How to use Snap Caliper ( EG-1, EG-2 )
Name of parts
To measure thickness and diameter of balls :
(1) First, press down a knob to check whether a pointer shows 0.
(2) As shown in the drawing II , put an object for measurement between a contact point
and anvil, and read a position of pointer on a dial plate. A division of scale is 0.1 mm,
so read the values on the dial 1, 2, 3... as 1, 2, 3 mm... ( After one rotation, it shows 11,
12, 13 mm... )
(3) One rotation of a pointer shows 10 mm. Check whether it is first or second rotation by
reading a spindle scale indication.
( Example ):A pointer shows 6 at your measurement:
1st rotation --> 6 mm, 2nd rotation --> 16mm
To measure thickness and diameter of balls
To measure groove width and inner diameter :
(1) Press down a knob and have a contact point and anvil contacted fast, then rotate an
outer frame of gauge so that a division of 3 on a dial plate meets a position of pointer.
(2) Pressing down a knob by your fingers, insert the tips of contact point and anvil into the
inside of an object for measurement, and slowly release a knob, as shown in the
drawing III
( Notice ) :Measure an object at right angles to a groove. If you measure it diagonally,
a value larger than the actual one will be indicated.
To measure groove width and inner diameter
To measure depth and step depth -( EG-2 only is available. )
(1) Rotate an outer frame of gauge so that a pointer meets 0 on a dial plate, by putting
a flat plate on the reference level of gauge. ( If there is no adequate plate, put your
gauge upside down, and press the reference level of gauge on a flat table ).
(2) Press your gauge down to the measuring part of an object for measurement, as
shown in the drawing IV
To measure depth and step depth (EG-2 only is available.)
Major Specifications
(1) A division of scale 0.1mm
(2) Measuring Range for measurement of thickness 0 ~ 20mm
for measurement of inner diameter 3 ~ 23mm
for measurement of depth 0 ~ 20mm
(3) Weight EG-1 ; 97g EG-2 ; 100g
Remarks
After your finising measurements of internal diameter and step depth, adjust a pointer so
as to meet 0 on a dial plate for thickness measurement.
