Đồng hồ đo lỗ Peacock CG-360, CG-355, CG-132

Yêu cầu giá tốt: 0984.843.683, Email: hien@ttech.vn
Chúng tôi cung cấp các thiết bị đo lường sau của hãng Peacock

Đồng hồ đo độ dày, 2 Đồng hồ đo độ dày PeacockĐồng hồ đo lỗ, 4 Đồng hồ đo lỗ Peacock, 5 Đồng hồ đo lỗ cán dài, 6 Đồng hồ đo lỗ cán dài Peacock, 7 Đồng hồ đo độ sâu

Đồng hồ đo hãng PeacockThước đo sâu peacock, dial depth gaugeĐồng hồ đo độ dày điện tử Peacock, digital thickness gaugeĐồng hồ đo độ dày Peacock, dial thickness gaugeĐồng hồ đo độ dày, R1-A, Peacock R1-A PeacockĐồng hồ đo độ dày, H, Peacock, Thickness gauges H PeacockĐồng hồ đo lỗ, CC-3C, Peacock, Cylinder gauges CC-3C PeacockĐồng hồ đo lỗ CC-138B PeacockĐồng hồ đo lỗ CC-136B PeacockĐồng hồ đo lỗ CC-134B PeacockĐồng hồ đo lỗ CC-132B PeacockĐồng hồ đo lỗ CC-130B PeacockĐồng hồ đo lỗ CC-128B PeacockĐồng hồ đo lỗ CC-124B PeacockĐồng hồ đo lỗ CC-270A PeacockĐồng hồ đo lỗ CC-260A PeacockĐồng hồ đo lỗ CC-255A PeacockĐồng hồ đo lỗ CC-245A PeacockThước cặp đồng hồ LA-9 PeacockThước cặp đồng hồ LA-8 PeacockThước cặp đồng hồ LA-7 PeacockThước cặp đồng hồ LA-6 PeacockThước cặp đồng hồ LA-5 PeacockThước cặp đồng hồ LA-4 PeacockThước cặp đồng hồ LA-2 PeacockĐồng hồ đo sâu T-6B PeacockĐồng hồ đo sâu T-6A PeacockĐồng hồ đo sâu T-2C PeacockĐồng hồ đo sâu T-4 PeacockĐồng hồ đo sâu T-3 PeacockĐồng hồ đo lỗ CC-2 PeacockĐồng hồ đo lỗ CC-1 PeacockĐồng hồ đo lỗ CC-3C PeacockĐồng hồ đo lỗ CC-4 PeacockĐồng hồ đo lỗ CC-5 PeacockĐồng hồ đo lỗ CC-6 PeacockĐế Gá Đồng Hồ So Peacock SIS-6CĐế Gá Đồng Hồ So Peacock YM-1Đế Gá Đồng Hồ Bằng Nam Châm Peacock YMH-1Bàn chống tâm Peacock OA, Bench Centers,


Thông tin sản phẩm

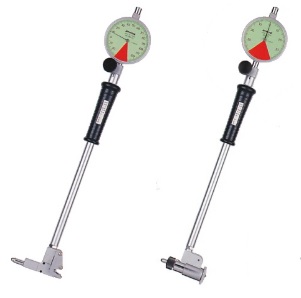

Đồng hồ đo lỗ Peacock CG-360, CG-355, CG-132

Full Choice Cylinder Gauges are available for a wide variety of applications. For added savings,
  Head for Cylinder Gauge and replaceable rods are sold singly, and not in a set.
All the contact points are tungsten carbide ball.
The standard ball tipped at the replacement rod is made of steel.
  The carbide ball is also available to tip.
Optional Dial Gauges 15Z and 17Z with the pointer rotate only one revolution.
Specifications
Model (Standard Type) Model (Blind Hole Type) Wide range
accuracy (µm)
Adjacent
error (µm)
Repeated
accuracy (µm)
CC-0110 - CC-0118 CG-0110 - CG-0118 5 2 2
CC-118 - CC-134 CG-118 - CG-134 5 2 2
CC-235 - CC-260 CG-235 - CG-260 5 2 2
CC-350 - CC-3100C CG-350 - CG-3100C 5 2 2

Full Choice Cylinder Gauges ; CC, CG series
Model CG-360
Range 59.5 - 64.5mm
CG-360
Model CC-355
Range 54.5 - 59.5mm
CC-355
Model CC-132
Range 31.5 - 33.5mm
CC-132


Standard Type (CC-01) Specifications
(Full Choice Cylinder Gauges ; CC0110 - CC-0118)

CC-01 head details
Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CC-0110 9.75 - 10.75 10 0.5 57B 17Z 5F 15Z
CC-0111 10.75 - 11.75 11 0.5 57B 17Z 5F 15Z
CC-0112 11.75 - 12.75 12 0.5 57B 17Z 5F 15Z
CC-0113 12.75 - 13.75 13 0.5 57B 17Z 5F 15Z
CC-0114 13.75 - 14.75 14 0.5 57B 17Z 5F 15Z
CC-0115 14.75 - 15.75 15 0.5 57B 17Z 5F 15Z
CC-0116 15.75 - 16.75 16 0.5 57B 17Z 5F 15Z
CC-0117 16.75 - 17.75 17 0.5 57B 17Z 5F 15Z
CC-0118 17.75 - 18.75 18 0.5 57B 17Z 5F 15Z
CC-0100 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CC-0100 include a spanner.


Blind Hole Type (CG-01) Specifications
(Full Choice Cylinder Gauges ; CG-0110 - CG-0118)

CG-01 head details
Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CG-0110 9.75 - 10.75 10 0.5 57B 17Z 5F 15Z
CG-0111 10.75 - 11.75 11 0.5 57B 17Z 5F 15Z
CG-0112 11.75 - 12.75 12 0.5 57B 17Z 5F 15Z
CG-0113 12.75 - 13.75 13 0.5 57B 17Z 5F 15Z
CG-0114 13.75 - 14.75 14 0.5 57B 17Z 5F 15Z
CG-0115 14.75 - 15.75 15 0.5 57B 17Z 5F 15Z
CG-0116 15.75 - 16.75 16 0.5 57B 17Z 5F 15Z
CG-0117 16.75 - 17.75 17 0.5 57B 17Z 5F 15Z
CG-0118 17.75 - 18.75 18 0.5 57B 17Z 5F 15Z
CG-0100 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CG-0100 include a spanner.

Page Top |

Standard Type (CC-1) Specifications
(Full Choice Cylinder Gauges ; CC-118 - CC-134)

CC-1 head details
Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CC-118 17.5 - 19.5 18 0.5, 1 57B 17Z 5F 15Z
CC-120 19.5 - 21.5 20 0.5, 1 57B 17Z 5F 15Z
CC-122 21.5 - 23.5 22 0.5, 1 57B 17Z 5F 15Z
CC-124 23.5 - 25.5 24 0.5, 1 57B 17Z 5F 15Z
CC-126 25.5 - 27.5 26 0.5, 1 57B 17Z 5F 15Z
CC-128 27.5 - 29.5 28 0.5, 1 57B 17Z 5F 15Z
CC-130 29.5 - 31.5 30 0.5, 1 57B 17Z 5F 15Z
CC-132 31.5 - 33.5 32 0.5, 1 57B 17Z 5F 15Z
CC-134 33.5 - 35.5 34 0.5, 1 57B 17Z 5F 15Z
CC-100 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CC-100 include a spanner.


Blind Hole Type (CG-1) Specifications
(Full Choice Cylinder Gauges ; CG-118 - CG-134)

CG-1 head details
Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CG-118 17.5 - 19.5 18 0.5, 1 57B 17Z 5F 15Z
CG-120 19.5 - 21.5 20 0.5, 1 57B 17Z 5F 15Z
CG-122 21.5 - 23.5 22 0.5, 1 57B 17Z 5F 15Z
CG-124 23.5 - 25.5 24 0.5, 1 57B 17Z 5F 15Z
CG-126 25.5 - 27.5 26 0.5, 1 57B 17Z 5F 15Z
CG-128 27.5 - 29.5 28 0.5, 1 57B 17Z 5F 15Z
CG-130 29.5 - 31.5 30 0.5, 1 57B 17Z 5F 15Z
CG-132 31.5 - 33.5 32 0.5, 1 57B 17Z 5F 15Z
CG-134 33.5 - 35.5 34 0.5, 1 57B 17Z 5F 15Z
CG-100 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CG-100 include a spanner.

Page Top |

Standard Type (CC-2) Specifications
(Full Choice Cylinder Gauges ; CC-235 - CC-260)

CC-2 head details
Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CC-235 34.5 - 39.5 35 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-240 39.5 - 44.5 40 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-245 44.5 - 49.5 45 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-250 49.5 - 54.5 50 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-255 54.5 - 59.5 55 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-260 59.5 - 64.5 60 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-200 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CC-200 include a spanner.


Blind Hole Type (CG-2) Specifications
(Full Choice Cylinder Gauges ; CG-235 - CG-260)

CG-2 head details
Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CG-235 34.5 - 39.5 35 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-240 39.5 - 44.5 40 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-245 44.5 - 49.5 45 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-250 49.5 - 54.5 50 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-255 54.5 - 59.5 55 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-260 59.5 - 64.5 60 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-200 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CG-200 include a spanner.

Page Top |

Standard Type (CC-3) Specifications
(Full Choice Cylinder Gauges ; CC-350 - CC-3100C)

CC-3 head details


CC-3C Adapter 50mm
With Adapter 50mm
CC-355C - CC-3100C
Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) Adapter
(mm)
0.01mm 0.001mm
CC-350 49.5 - 54.5 50 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-355 54.5 - 59.5 55 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-360 59.5 - 64.5 60 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-365 64.5 - 69.5 65 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-370 69.5 - 74.5 70 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-375 74.5 - 79.5 75 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-380 79.5 - 84.5 80 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-385 84.5 - 89.5 85 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-390 89.5 - 94.5 90 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-395 94.5 - 99.5 95 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-3100 99.5 - 104.5 100 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-355C 104.5 - 109.5 55 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-360C 109.5 - 114.5 60 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-365C 114.5 - 119.5 65 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-370C 119.5 - 124.5 70 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-375C 124.5 - 129.5 75 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-380C 129.5 - 134.5 80 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-385C 134.5 - 139.5 85 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-390C 139.5 - 144.5 90 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-395C 144.5 - 149.5 95 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-3100C 149.5 - 154.5 100 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-300 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CC-300 include a spanner.


Blind Hole Type (CG-3) Specifications
(Full Choice Cylinder Gauges ; CG-350 - CG-3100C)

CG-3 head details


CG-3C Adapter 50mm
With Adapter 50mm
CG-355C - CG-3100C
Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) Adapter
(mm)
0.01mm 0.001mm
CG-350 49.5 - 54.5 50 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-355 54.5 - 59.5 55 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-360 59.5 - 64.5 60 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-365 64.5 - 69.5 65 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-370 69.5 - 74.5 70 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-375 74.5 - 79.5 75 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-380 79.5 - 84.5 80 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-385 84.5 - 89.5 85 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-390 89.5 - 94.5 90 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-395 94.5 - 99.5 95 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-3100 99.5 - 104.5 100 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-355C 104.5 - 109.5 55 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-360C 109.5 - 114.5 60 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-365C 114.5 - 119.5 65 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-370C 119.5 - 124.5 70 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-375C 124.5 - 129.5 75 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-380C 129.5 - 134.5 80 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-385C 134.5 - 139.5 85 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-390C 139.5 - 144.5 90 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-395C 144.5 - 149.5 95 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-3100C 149.5 - 154.5 100 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-300 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CG-300 include a spanner.
