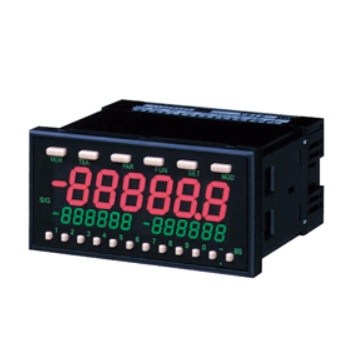

Đồng hồ hiển thị tốc độ vòng quay NIDEC DT-5TXR,DT-5TFR, DT-5TVR

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Đồng hồ hiển thị tốc độ vòng quay NIDEC DT-5TXR,DT-5TFR, DT-5TVR
Thông tin sản phẩm
Đồng hồ hiển thị tốc độ vòng quay NIDEC DT-5TXR,DT-5TFR, DT-5TVR


No. Specification Code Description
1 Type of input 5TXR Basic input
5TFR Differential input
5TVR Voltage/current input
2 Power source A AC power source (AC 85-264 V)
D *1 DC power source (DC 9-35 V)
3 First option *4
(terminal block input/output) FVTR Analog signal (voltage/current) output
CPTR Relay output
TRTR Transistor output
RMTR External signal input (basic) *2
DRTR External signal input (differential) *3
4 Second option *4
(connector output) FVCR Analog signal (voltage/current) output
BCDR BCD output
*1: The DC power source type is available only for the DT-5TXR series.
*2: When a DT-5TVR series unit is connected to RMTR, external signal input applies.
When a DT-5TXR series unit is connected to RMTR, it serves as a ratio meter.
*3: When a DT-5TFR series unit is connected to DMTR, it serves as a ratio meter.
*4: Please note that, after purchase of the main unit, only an option
with a code ending with "R" can be connected as the first option.
(This limitation does not apply to the second option.)
