Giá thử momen xoắn imada mts 10n

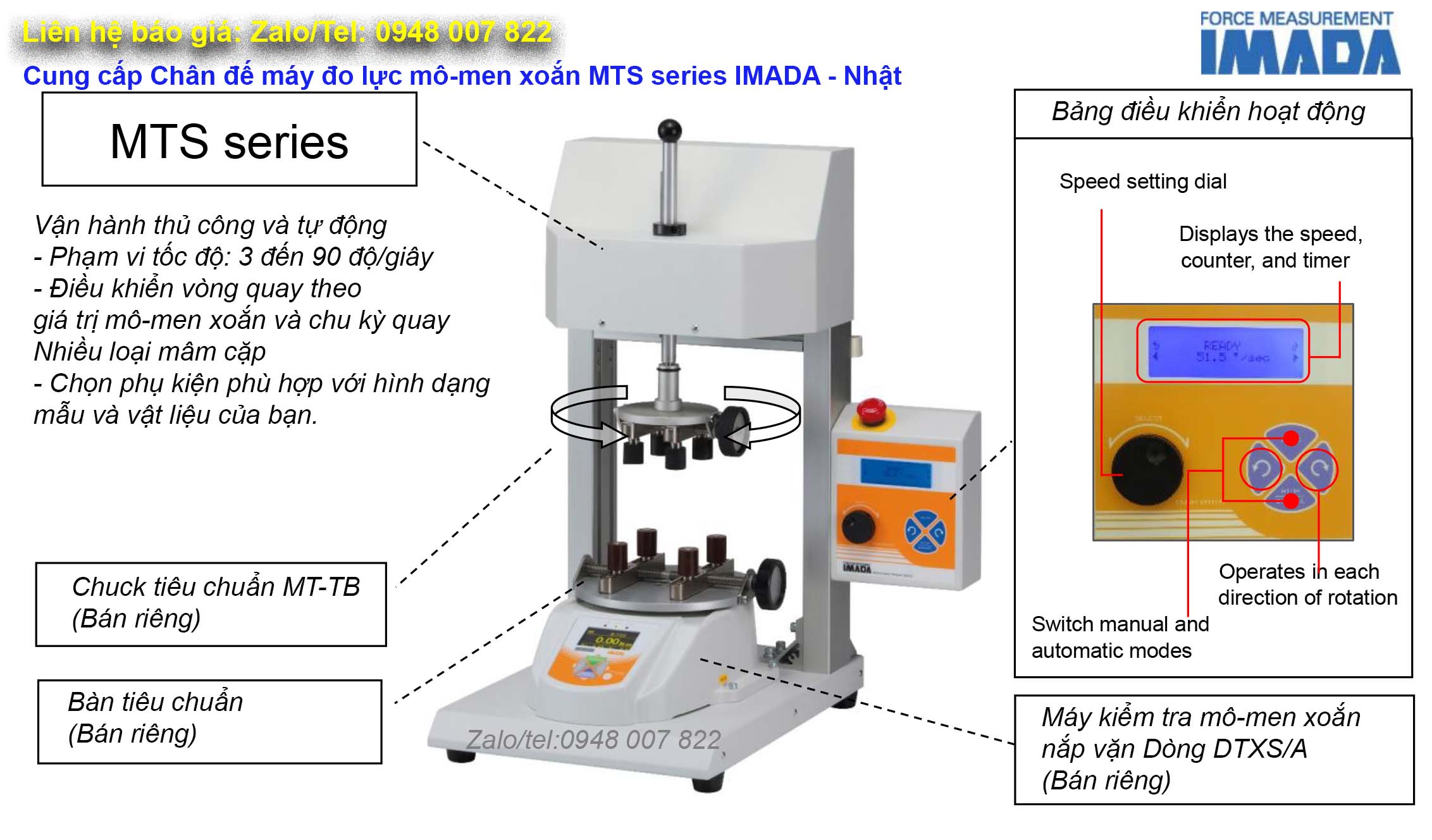

Specifications for Motorized Torque Stand MTS series
| Capacity |
10N-m |
| Stroke |

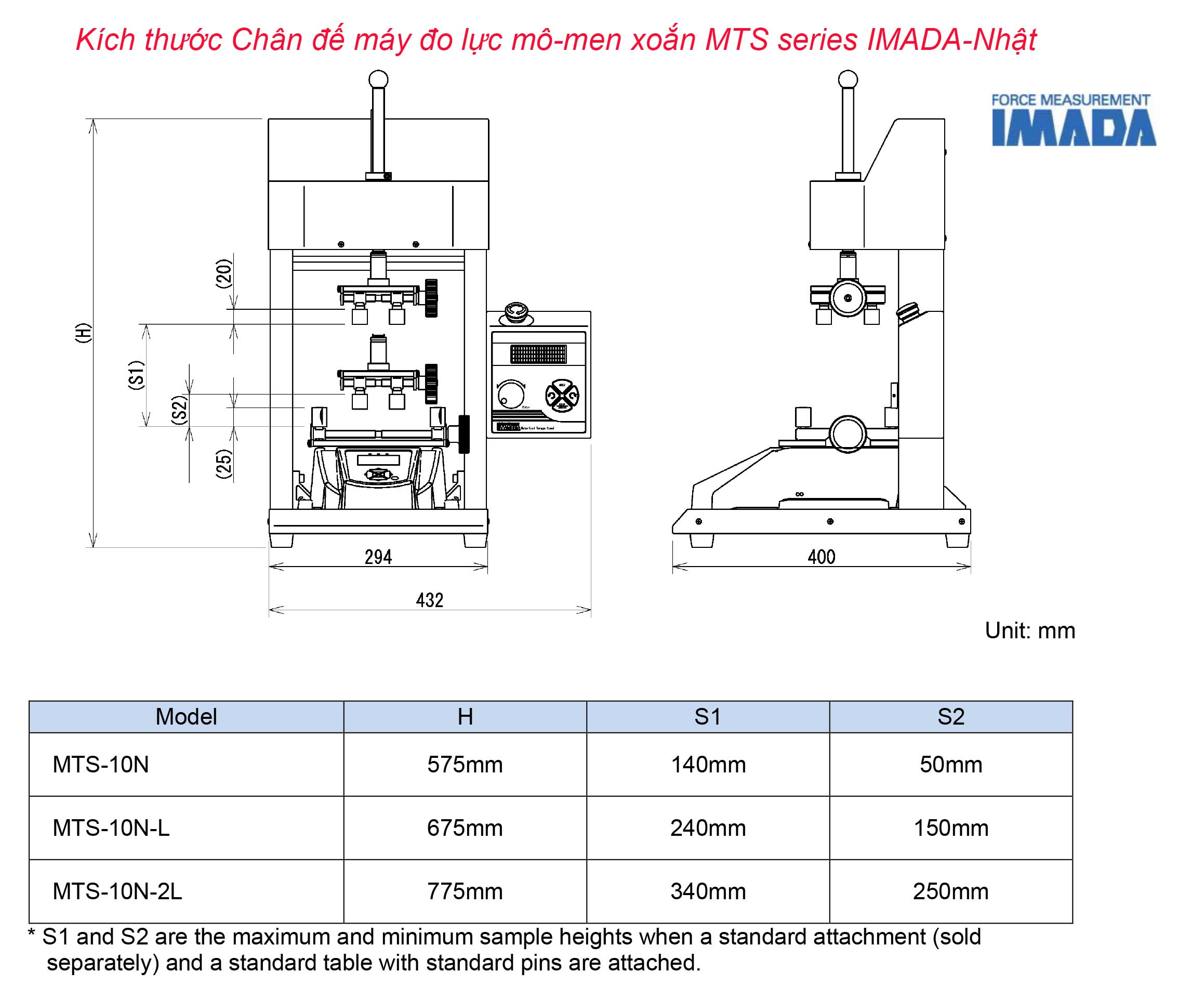

Refer the dimensions |
| Dimension(mm) |
Refer the dimensions |
| Weight |
Approx.14kg |
| Speed range |
3 ~90 degree/sec |
| Function |
Manual mode,JOG mode, Automatic mode(CONTINUOUS、ONE WAY) *1 |
| Overload preventing function*1,Speed adjustment |
| Option |
Rotary encoder option*2 (-RA is at the end of the model) |
| Voltage |
AC100V ~240V , 50/60Hz, max 3A*3 |
| Operating Temperature |
0 – 40 degree Celsius |
| Operating Humidity |
85% or less(No condensation) |
*1 Torque gauge should be connected with the cable (included).
*2 This option is factory fitted only. To save or check angle, a DTXA and Force Recorder Professional software are required.
*3 Fuse may need changing, when used in a place other than country of purchase. Please ask us or your local distributor for the details.
Model List of Motorized Torque Stand MTS series
| Model |
Option |
Maximum sample height |
| MTS-10N |
Standard |
140mm |
| MTS-10N-L |
240mm |
| MTS-10N-2L |
340mm |
| MTS-10N-RA |
with a rotary encoder* |
140mm |
| MTS-10N-L-RA |
240mm |
| MTS-10N-2L-RA |
340mm |
| MTS-10N-ST＋□□□ |
Height change |
Please inform us the necessary height |
| MTS-10N-RA-ST＋□□□ |
Height change, with a rotary encoder*
|
