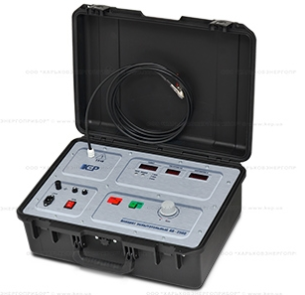

Hợp bộ thử nghiệm cao áp AI-2500 KEP

Mã sản phẩm: AI-2500 |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Hợp bộ thử nghiệm cao áp
Model: AI-2500
Hãng: KEP
Thông tin sản phẩm

An insulation testing unit AI-2500 is designed for testing the insulating properties of the electrical equipment and materials with the AC sine-wave voltage adjustable in the range 0-2500 V at 50 Hz.

Thông số kỹ thuật
  • Condition Value
    Air temperature, °С from +5 to +40
    Relative humidity, %, up to
    80 at +20° С
    Atmospheric pressure, kPa (mm hg)
    84,0 – 106,7 (630 – 800)
Characteristic Value
Single-phase AC power supply voltage, V 220±11
Power supply frequency, Hz 50±1
Output voltage range, V
Relative error of output voltage measurement, %, max ± 3
Maximum operating current, mA 500
Output current measurements range, mA
Relative error of output current measurement, %, max ± 3
Current safety trigger threshold 1.1
Power consumption, VA, max 1400
Dimensions, mm, max 480х350х200
Net weight, kg, max
Period of uninterrupted duty under maximum load, hours
Lifespan, years, min 10
