Hợp bộ tìm sự cố cáp ngầm VP-300 KEP

Mã sản phẩm: VP-300 |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Hợp bộ tìm sự cố cáp ngầm
Model: VP-300
Hãng: KEP
Thông tin sản phẩm

- Diode rectifier VP-300 is designed for disintegration a soldered connection point where cable's lead vein is short-circuiting with the sheath.

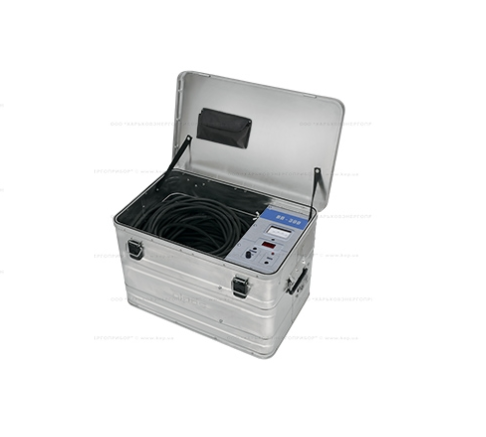

- The device is manufactured in an aluminium containing case, equipped with convenient carrying handles and a hinged lid. The case has a compartment for cable management and control unit bay. Protective grounding is connected to the device via the grounding bolt. The device features active cooling fans for effective cooling of power thyristors.
- VP-300 is powered from the three-phase AC mains, which is supplied through a four-wire power cable. Neutral conductor should always be connected to the power supply as the control unit of the device is powered by the single-phase 220 V voltage.
- Input current is controlled by the rotary handle of the current regulator. VP-300 also features an automatic fuse protection should the input current go over the limit of 320 A or power thyristors heat over 85 °C.
- To make usage of the device even easier, VP-300 is supplied with a remote control, which could be used for switching on the input current.

Thông số kỹ thuật

Characteristic Value
Three-phase AC power supply voltage (4-wire connection layout), V 380±38
Power supply frequency, Hz 50±1
Duty cycle
Short-term
Maximum output current, A
300
Fuse latching current, A
320±10
Consumed power, kW, max
115
Dimensions, mm, max 480х350х200
Net weight, kg, max 35
Lifespan, years, avg 10
