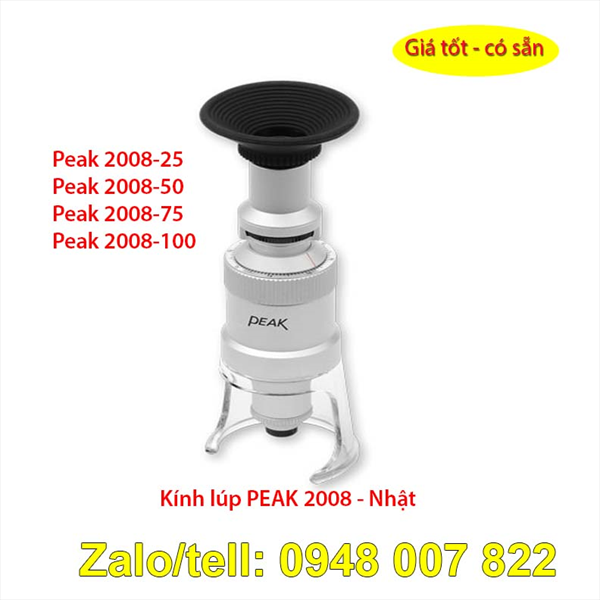

Kính lúp peak 2008 peak 2055 cil peak 2001 peak 2009 peak 2010 20x 25x 40x 60x 75x 100x 150x 200x 300x

Mã sản phẩm: MSP |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Kính lúp peak 2008 peak 2055 cil peak 2001 peak 2009 peak 2010 20x 25x 40x 60x 75x 100x 150x 200x 300x

    Yêu cầu giá tốt:

    0984.843.683.

    Email: hien@ttech.vn

Thông tin sản phẩm

Kính lúp peak 2008 peak 2055 cil peak 2001 peak 2009 peak 2010 20x 25x 40x 60x 75x 100x 150x 200x 300x


Item Number 2008-25 2008-50 2008-75 2008-100
Magnification 25X 50X 75X 100X
Field of View 3.30 mmø 2.00mmø 1.09mmø 0.84mmø
Min. Scale Div. No. 24 = 0.05mm
No. 26 = 0.002"
No. 13 = 0.02mm
No. 15 = 0.001"
No. 34 = 0.01mm
No. 36 = 0.0005"
No. 44 = 0.005mm
No. 46 = 0.0005"
Measuring Range 3.0mm 1.6mm 1.0mm 0.8mm
Working Distance 17.0mm 11.7mm 11.7mm 11.6mm
Numerical Aperture 0.11 0.18 0.22 0.22
Focal Distance 19.8mm 14.9mm 9.9mm 9.9mm
Size (mm) 41.5øx122 41.5øx122 41.5øx122 41.5øx122
Net Weight 83 g 83 g 83 g 88 g
