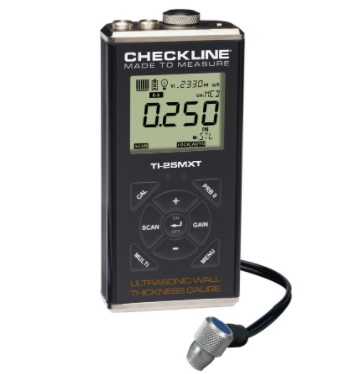

Máy đo chiều dày siêu âm Checkline TI-25DLX, TI-25MX, TI-25SX

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo chiều dày siêu âm Checkline TI-25DLX, TI-25MX, TI-25SX

    Yêu cầu giá tốt:

    0984.843.683.

    Email: hien@ttech.vn

Thông tin sản phẩm

Máy đo chiều dày siêu âm Checkline TI-25DLX, TI-25MX, TI-25SX


Total Measuring Range
(Steel)
0.025 - 36.000 inches
0.63 - 914.4 mm
(depends on material and transducer/probe type)
Measuring Range
(Steel)
0.025-6.000 inches
0.60-150.0 mm
(with standard transducer T-102-3300)
Resolution 0.001 inch (0.01 mm)
Measuring Mode Pulse-Echo (P-E)
Velocity Range 0.0120 to .7300 in/μs (305 to 18,542 m/sec)
Probe (Standard) 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300
Probes (optional) 1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
Probe Wearface PEEK (Polyethylethylkytone)
Cable 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
LCD Display Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
Display Backlight Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Display Update Rate 10 Hz (10 updates/sec)
Temp. Limits Ambient: -30 to 75° C (-22 to 167° F)
Material: -20 to 100° C (0 to 200° F)
High temperature probes available
Battery Type 2x AA batteries (rechargeable batteries can be used)
Battery Life 45 hours continuous use
Weight 308 grams (11 ounces)
Dimensions 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
Accessories Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
