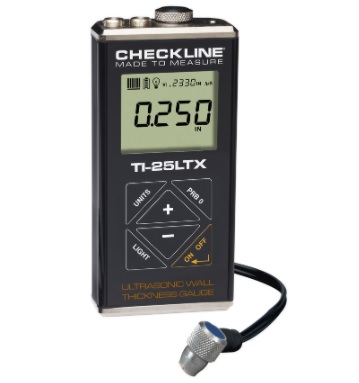

Máy đo chiều dày siêu âm Checkline TI-25PX, TI-25LTX

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo chiều dày siêu âm Checkline TI-25PX, TI-25LTX

    Yêu cầu giá tốt:

    0984.843.683.

    Email: hien@ttech.vn

Thông tin sản phẩm

Máy đo chiều dày siêu âm Checkline TI-25PX, TI-25LTX


Range in Steel 0.040-6.000" (1.00-150.0 mm) with standard transducer (probe)
Overall range of gauge is 0.025" up to 36 inches (0.63 up to 914mm)
Depends on transducer
Resolution 0.005 inch (0.05 mm)
Display Backlight Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Velocity Range fixed at 2330 in/μs. / 5920 meters/sec
Probe (Standard) 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2000
Probe Wearface PEEK (Polyethylethylkytone)
Cable 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
Temp. Limits Ambient: -30 to 75° C (-22 to 167° F)
Material: -20 to 100° C (0 to 200° F)
High temperature probes available
Battery Type 2x AA batteries (rechargeable batteries can be used)
Battery Life 45 hours continuous use
Weight 308 grams (11 ounces)
Dimensions 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
Accessories Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
