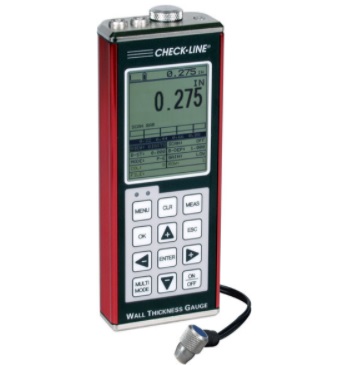

Máy đo chiều dày siêu âm Checkline TI-MMX-SDL


Range in Steel: Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999 inches)

Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.100 - 4.000 inches). Range will vary depending on the thick
Resolution: .001 inches (0.01mm)
Velocity Range: .0492 to .3936 in./ms
1250 to 9999 meters/sec
Units: English & Metric
Measurement Modes: - Pulse-Echo (flaws, pits)
- Echo-Echo (thru-paint)
Transducer Types: Dual Element (1 to 10 MHz).
Memory: 16 megabit non-volatile ram
Memory capacity: 12,000 pages with 1 reading and waveform per page
Power Source: Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life: Typically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off: if idle 5 min
Display: 1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard: Membrane switch with twelve tactile keys
Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature: -14° to 140°F (-10° to 60°C)
Weight, net: 383 grams
Dimensions: 63.5 W x 165 H x 31.5 D mm
Warranty: 2 year limited
Certification: CE Approved, Factory calibration traceable to national standards
