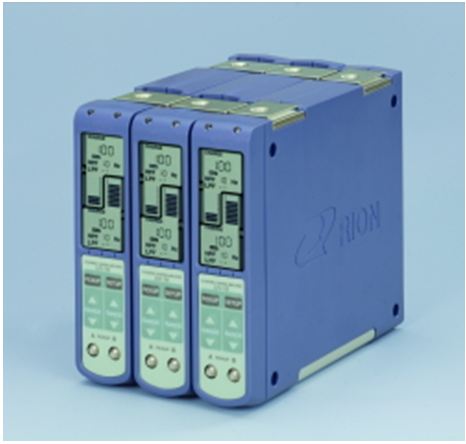

- Example of 6-channel configuration (3 UV-16 units and BP-17 battery unit) 2-channel Charge Amplifier
- Equipped with LCD display, overload indicator LED, operating switch, input/output terminals, power input terminals and coupling connectors
- It can be mounted on JIS standard racks even with a small number of channels (max. 12 units, 24 channels)
- AC adapter or battery unit BP-17 can be used as the power source
- The UV-16 is a 2-channel charge amplifier that is compatible with the input of piezoelectric accelerometers and accelerometers with built-in preamplifier.
- A multi-channel charge amplifier can be configured by coupling together a maximum of 16 units and 32 channels.
- Front View Rear View Acceleration Velocity Displacement
