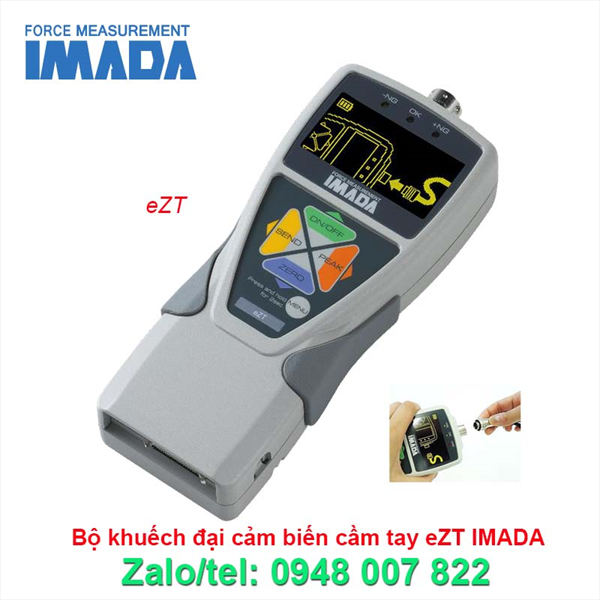

Máy đo lực kéo nén eZT Imada

Mã sản phẩm: eZT |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo lực kéo nén
Model: eZT
Hãng: Imada
Thông tin sản phẩm
Model eZT
Accuracy +/-0.2%F.S. (*1)
Unit of measurement Depends on load cell and settings
(N, kN, kgf, lbf N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in)
Display 4-digit
Display update 16 / sec
Sampling rate 2000 data / sec at maximum (*2)
Battery 8 hours (2 hours charge) (*3)
Operating environment Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH
Functions Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory,
Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm,
Off timer (auto power off), Dumping,Time display, 1st/2nd peak,Displacement detection at force peak value,
Displacement zero reset at selected force, setting lock
Output USB, RS232C, Mitutoyo digimatic (*4), 2 VDC analog output (D/A),
Comparator 3 steps (-NG/OK/+NG), Overload alarm, Sub comparator 2 steps (output of large or small judgment),
USB flash drive, Displacement.
Overload warning Approx.110%F.S. (Warning message and alarm )
External connecting switch SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Available liner scales (*5) - Online driver output
(a line receiver according to RS422/485 must be built in.)
- Open collector output
(Voltage drop between contacts must be smaller than 0.5V.)
Weight Approx. 490g
Dimensions Please refer to dimensions.
Accessories AC adapter, CD driver (including simple software for data logging),
Force Recorder Professional (Trial ver.),
USB cable, Carrying case, Adaptor for USB flash drive (*6)
