Máy đo lực kéo nén ZT series Imada

Mã sản phẩm: ZT series |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo lực kéo nén
Model: ZT series
Hãng: Imada
Thông tin sản phẩm
Model ZTA ZTS
Feature Advanced model with various functions such as data saving
in USB memory stick, displacement I/O and more.
Standard model with the same benefit in performance as ZTA series but reduced functions.
Accuracy +/-0.2%F.S.+/-1digit
Unit of measurement (*1) N, kgf, lbf (*2)
Display 4-digit LCD
Display update 16 times / sec.
Sampling rate 2000 data / sec. (max) (*3)
Battery 8 hours (2 hours charge)(*4)
Safe overload rating Approx.200%F.S.
Operating environment Temperature: 0 to +40 degree Celsius Humidity: 20 to 80%RH
Function Customized display (header and footer), Peak hold (tension and compression),
Internal 1000 points data memory,
Comparator (judgment of acceptance or rejection), Reversible display, Sign inversion,
Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Date/time display, Setting lock
1st/2nd peak, Displacement detection at force peak value, Displacement zero reset at selected force -
Output USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG)
Sub comparator 2 steps (output of large or small judgment)USB flash drive, Displacement -
Overload warning Approx.110%F.S. (Warning message shows up and alarm goes off )
Available linear scales (*6) - Online driver output (a line receiver according to RS422/485 must be built in.)
- Open collector output (Voltage drop between contacts must be smaller than 0.5V.)

 -

External connecting switch SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Weight Approx.1100g (*7)
Dimensions Please refer to dimensions.

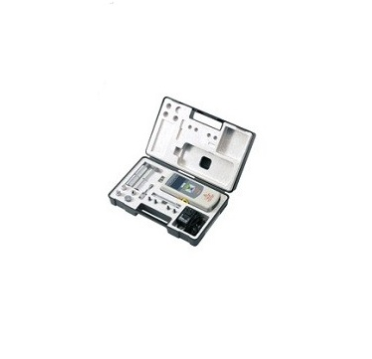

Accessory(*6) AC adapter, Inspection certificate, CD driver (including simple software for data log),
Attachments (The set of attachments varies according to range.), USB cable, Carrying case.
Adapter for USB flash draive (*8) -
