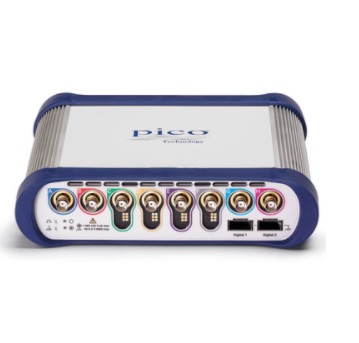

Máy hiện sóng Oscilloscope PicoScope 6804E, PicoScope 6824E

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy hiện sóng Oscilloscope PicoScope 6804E, PicoScope 6824E

Thông tin sản phẩm

Máy hiện sóng Oscilloscope PicoScope 6804E, PicoScope 6824E


PicoScope 6000E Series Specifications
  PicoScope 6804E PicoScope 6824E
Vertical (analog channels)
Input channels 8
Bandwidth (–3dB) 500 MHz
Rise time < 850 ps
Bandwidth limit 20 MHz, selectable
Vertical resolution 8 bits fixed 8, 10 or 12 bits FlexRes
Enhanced vertical resolution
(software)
Up to 4 extra bits beyond ADC resolution
Input type Single-ended BNC connector
Input characteristics 1 MΩ ±0.5% in parallel with 12 pF ±1 pF, or 50 Ω ±2%
Input coupling 1 MΩ AC/DC or 50 Ω DC
Input sensitivity 2 mV/div to 4 V/div (10 vertical divisions)
Input ranges (full scale) 1 MΩ ranges: ±10 mV, ±20 mV, ±50 mV, ±100 mV, ±200 mV, ±500 mV, ±1 V, ±2 V, ±5 V, ±10V, ±20 V 50 Ω ranges: ±10 mV, then as above up to ±5 V
DC gain accuracy ±(1.5% of signal + 1 LSB) ±(0.5% of signal + 1 LSB)
DC offset accuracy ±(1% of full scale + 250 µV) Offset accuracy can be improved by using the “zero offset” function in PicoScope 6.
LSB size
(quantization step size)
8 bits: < 0.4 % of input range 8 bits: < 0.4 % of input range
10 bits: < 0.1 % of input range
12 bits: < 0.025 % of input range
Analog offset range
(vertical position adjustment)
±1.25 V (10 mV to 1 V ranges)
±20 V (2 V to 20 V ranges)
Analog offset control accuracy ±0.5% of offset setting, additional to DC accuracy above
Overvoltage protection 1 MΩ ranges: ±100 V (DC + AC peak) up to 10 kHz
50 Ω ranges: 5.5 V RMS
